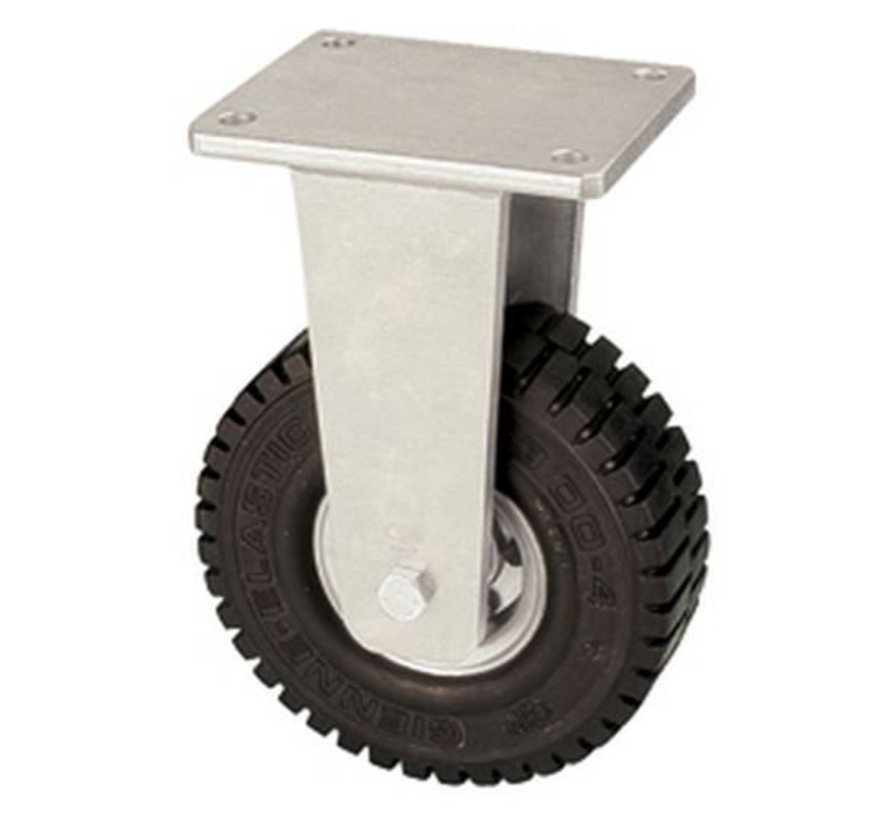

Fixed castor with super elastic rubber wheel 305 mm, load capacity: 535 KG at 6 km/h

Product description

Fixed castor with super elastic rubber wheel 305 mm, load capacity: 535 KG at 6 km/h

Heavy-duty welded fixed fork, zinc plated

Tyre: 4.00x8 Black SUPER ELASTIC rubber, 8 Ply rating, ball bearings

Rim: strong metal rim, bolted together, zinc plated

Temperature range: from –15°C to +60°C.
Fair resistance to chemicals.
Very good resistance to abrasion.
Operation: manual-mechanical.

wheel diameter: 305 mm
wheel witdh: 92 mm
axle hole: 20 mm
hub length: 50 mm
top plate dimensions: 200x160 mm
bolt hole dimensions: 160x120 mm
bolt hole: 15,5 mm
overall height: 392 mm
load capacity: 535 kg at 6 KM/h

Options:
- various types of profiles treads
- water-resistant bearings

Industry norms NEN-EN 12527 for caster wheels tests wheels at 4,1 KM/h. For higher speed, it is advised to reduce the indicated load capacity with the following factors

- At 10 KM/h speed, the load of each wheel is advised to be 80% of the load at KM/h

- At 16 KM/h speed, the load of each wheel is advised to be 55% of the load at KM/h

- At 20 KM/h speed, the load of each wheel is advised to be 45% of the load at KM/h


Most of our castors and wheels are developed following a request. We would be happy to make a bespoke solution for you too.
