swivel castor with brake Ø 160 x 50mm polyurethane tyre Load capacity 300kg - Industrial Wheels - Industrialwheels.com

Back

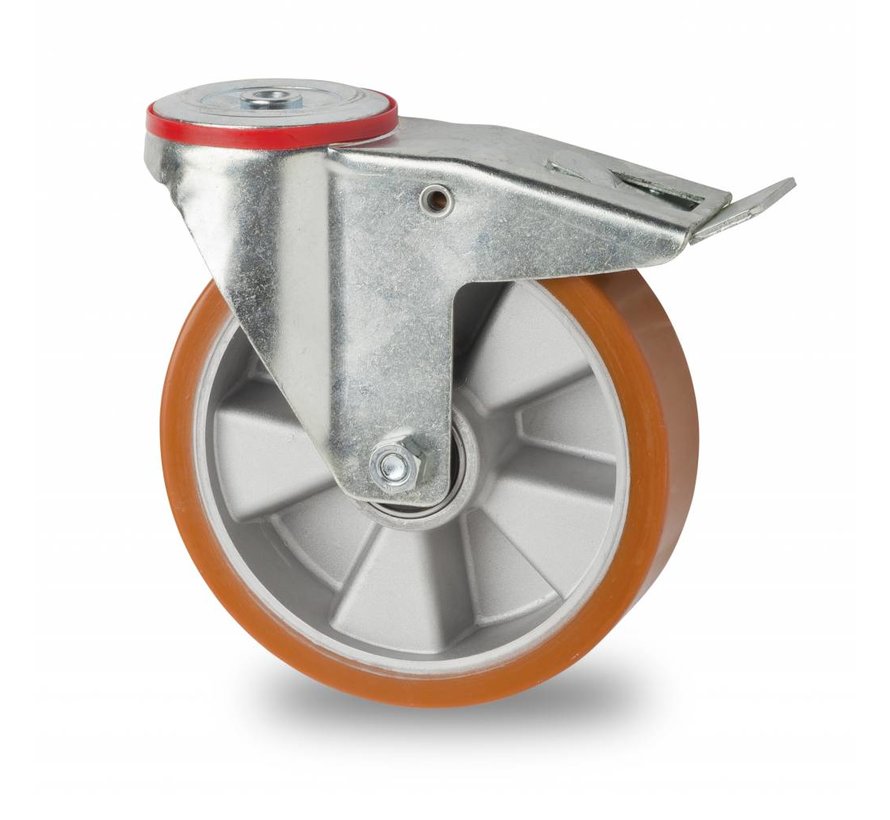

industrial swivel castor with brake from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 160mm, 300KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 160mm, 300KG

industrial polyurethane (PU) swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: vulcanized polyurethane tread, with wheel centre from aluminium, precision ball bearing,

Benefits: For medium heavy transport on smooth floors. Low rolling resistance. Relatively insensitive to cut and tear propagation resistance and very durable. Non-marking, quiet operation. Smooth surface, hygienic.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 160mm, 300KG

industrial swivel castor with brake from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 160mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140416163
  • EAN 8718116186304

Specifications

  • Non marking tread Yes
  • Wheel diameter 160
  • Load capacity 300
  • Overall height 190
  • Offset 52
  • Swivel Radius 132.0
  • Bearing type Ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with vulcanised polyurethane tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Bolt hole diameter 13
  • Series 40.41
  • Tread Polyurethane
