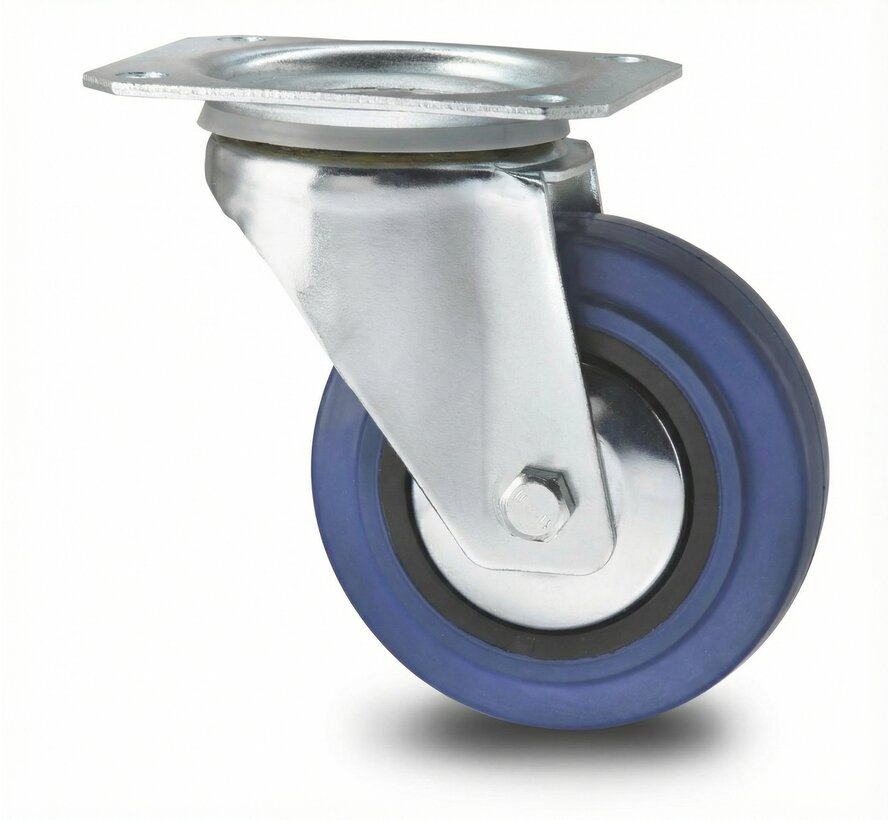

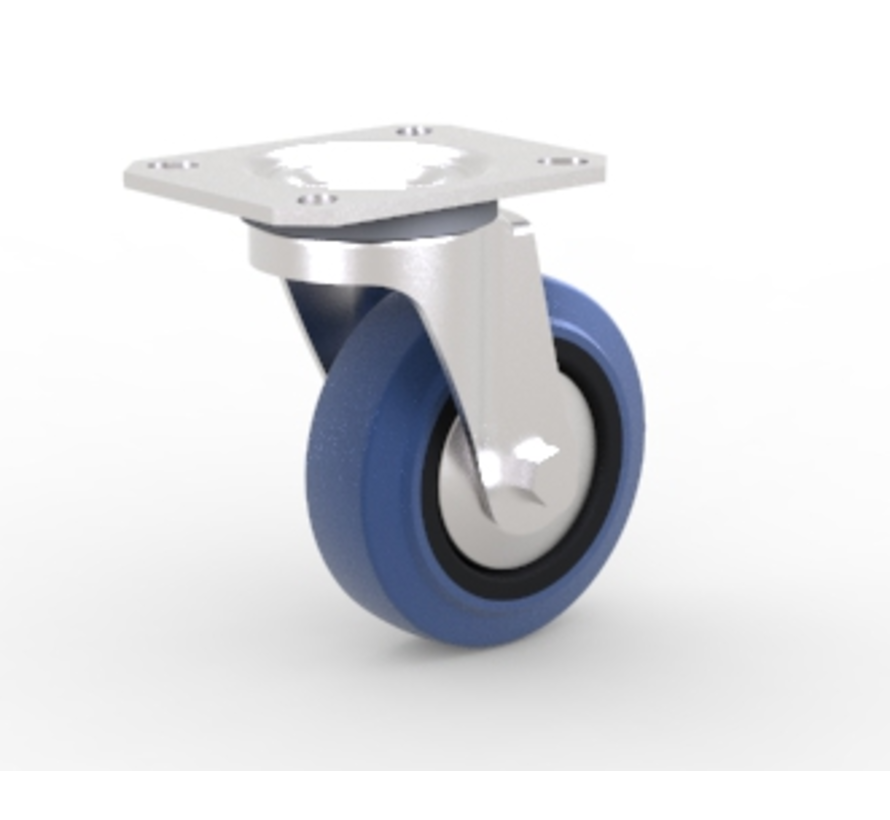

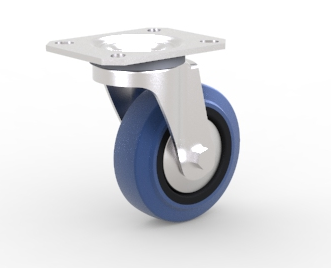

Industrial swivel castor, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Product description

Industrial Swivel castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Industrial elastic rubber swivel castor

Housing: pressed steel,, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Polyamide, roller bearing, threadguards

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Flight case, Roll cage caster, Trolleys for Industrial Handling, Flightcase, Theater & Entertainment, blue elastic rubber

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Dry and not permanently wet. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial swivel castor, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Industrial Swivel castor from pressed steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146572106K
  • EAN 8718116104490

Specifications

  • Size of plate 105x80
  • Overall height 128
  • housing / bracket pressed steel
  • Swivel Radius 87
  • Offset 37
  • Plate hole 9
  • Plate hole centres 80x60
  • type swivel castor
  • fitting top plate fitting
  • wheel centre polyamide
  • tread elastic-tyre
  • bearing type roller bearing
  • Load capacity (static) 150
  • Hardness of tread 80
  • Width of tread 35
  • Wheel-Ø 100
