swivel castor Ø 125 x 37mm polyurethane Load capacity 200kg - Industrial Wheels - Industrialwheels.com

Back

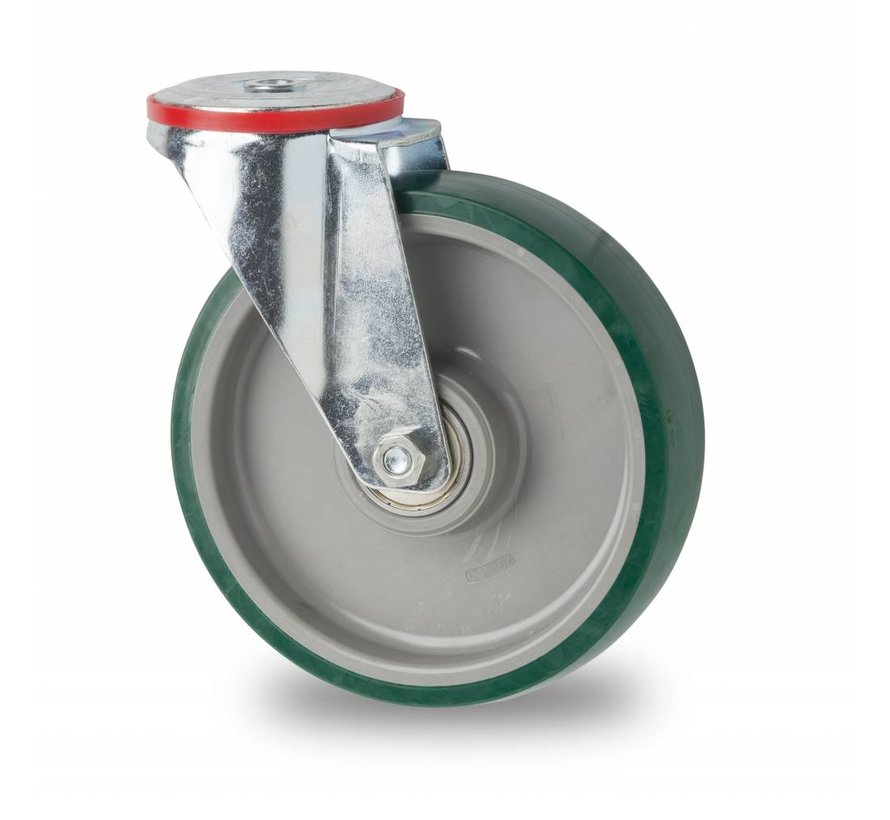

industrial swivel castor from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

Product description

industrial swivel castor from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

industrial polyurethane (PU) swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: injected polyurethane, with wheel centre from polyamide, precision ball bearing, threadguards

Benefits: For medium and heavy transport on slippery floors for prolonged use under static load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

industrial swivel castor from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140986120
  • EAN 8718116186397

Specifications

  • Non marking tread Yes
  • Wheel diameter 125
  • Wheelwitdh 32
  • Load capacity 200
  • Overall height 155
  • Offset 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Bolt hole diameter 13
  • Series 40.98
  • Tread Polyurethane
