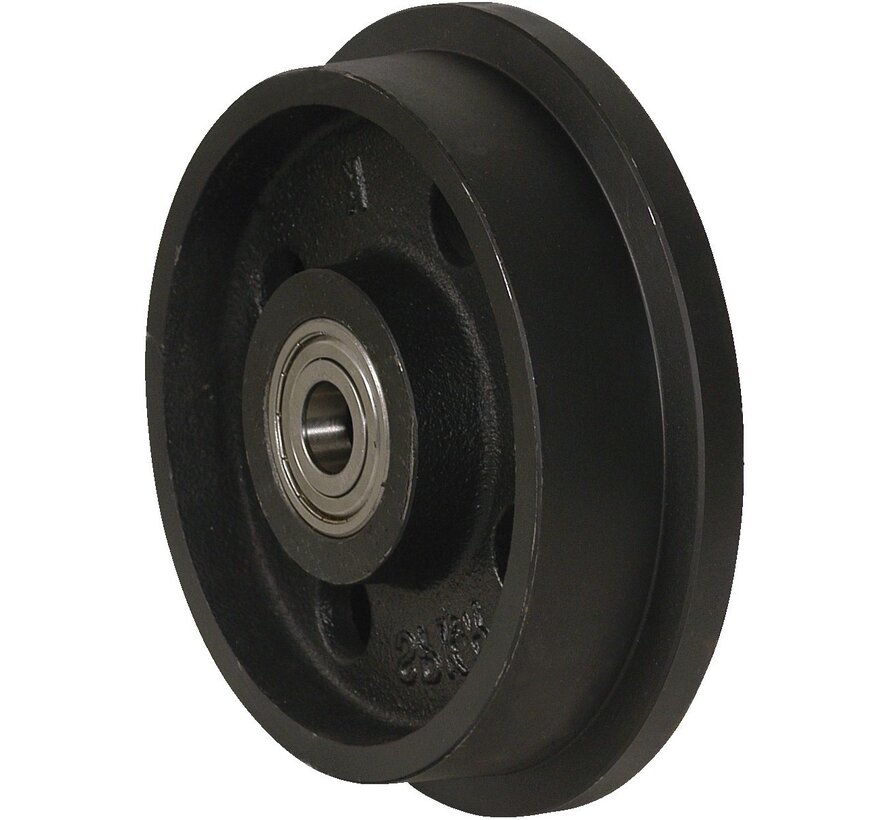

Flanged wheel from cast iron, double ball bearing, Wheel-Ø 180mm, 1200KG

Product description

SPK 180K: Track roller / Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 180mm, 1200KG

SPK 180K: Wheel centre from cast iron, precision ball bearing,


Features: flanged wheels (single) of special cast iron, painted. The flange and tread are pure spun. The tread extends at an angle of 3 degrees from the flange. Starting from the diameter of 150 mm a grease nipple is mounted. The wheels are available with plain or ball bearing.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Flanged wheel from cast iron, double ball bearing, Wheel-Ø 180mm, 1200KG

SPK 180K: Track roller / Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 180mm, 1200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100026180
  • EAN 8718116074847

Specifications

  • Wheel diameter 180
  • Load capacity 1200
  • Bearing type Ball bearing
  • Tread description Flange wheel made of high-quality cast iron. The track crown and tread are cleanly turned off. The tread descends from the track crown at an angle of 3 degrees.
  • Type of wheel Flange / Track / Diabolo wheels
  • Wheel width without flange 36
  • Wheel diameter inc flange 210
  • Hub length 52
  • Flange type 109
  • Diameter with flange 210
  • Flange Thickness / Width 12
  • Axle hole-Ø 20
  • Series 100.02
  • Tread Cast iron / steel
