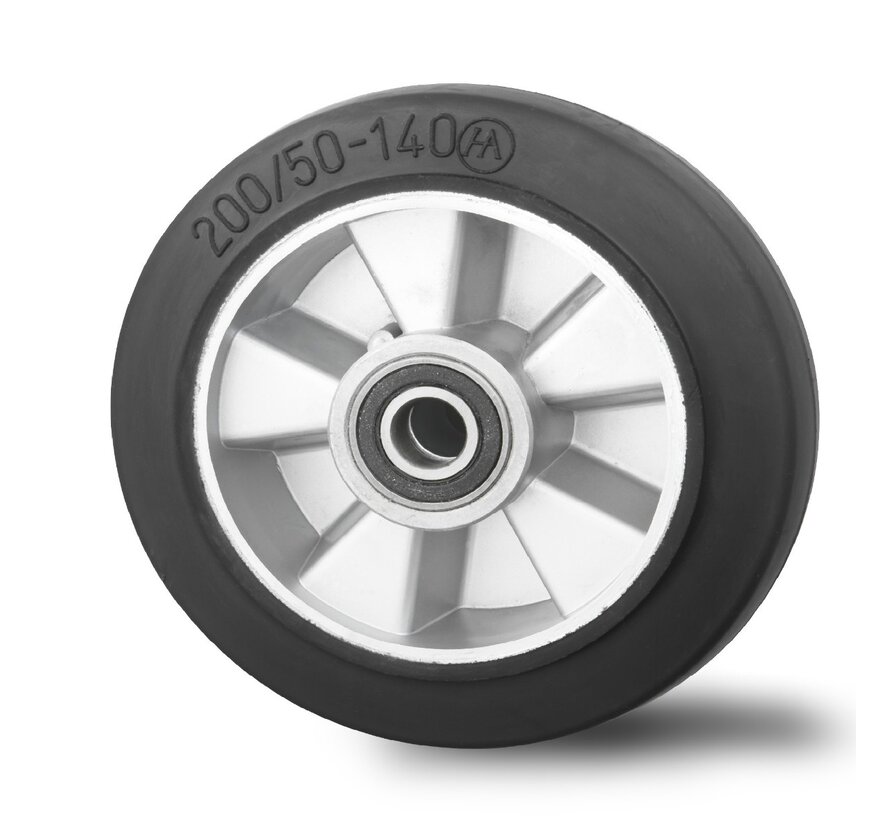

Industrial Wheel from elastic-tyre, precision ball bearing, Wheel-Ø 200mm, 400KG

Product description

Industrial Wheel from elastic-tyre, precision ball bearing, Wheel-Ø 200mm, 400KG

0Wheel: elastic-tyre, with Wheel centre from Aluminium, precision ball bearing,

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Permanently dry and not humid. For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Wheel from elastic-tyre, precision ball bearing, Wheel-Ø 200mm, 400KG

Industrial Wheel from elastic-tyre, precision ball bearing, Wheel-Ø 200mm, 400KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100116200
  • EAN 8718116076384

Specifications

  • Size of plate 135x109
  • Overall height 248
  • Offset 58
  • Plate hole 11
  • Plate hole centres 105x80
  • type wheel
  • wheel centre Aluminium
  • tread elastic-tyre
  • bearing type precision ball bearing
  • Axle hole-Ø 20
  • Temperature -20 ÷ +85
  • Load capacity (static) 400
  • Hardness of tread 70
  • Hub length 60
  • Width of tread 50
  • Wheel-Ø 200
