heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 450mm, 50KG

Product description

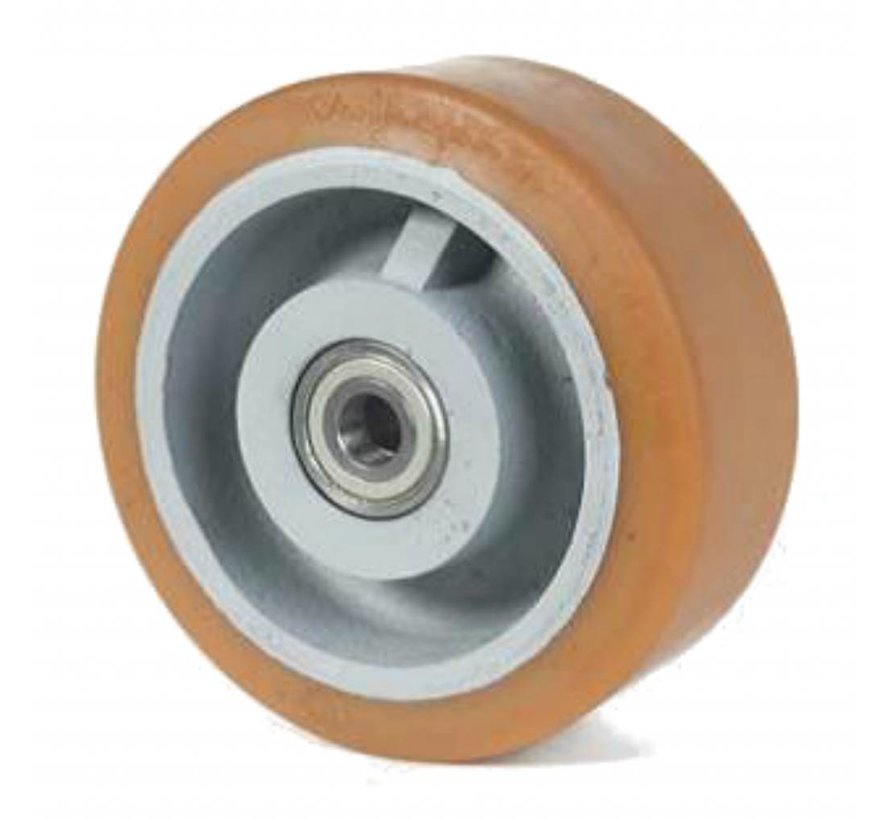

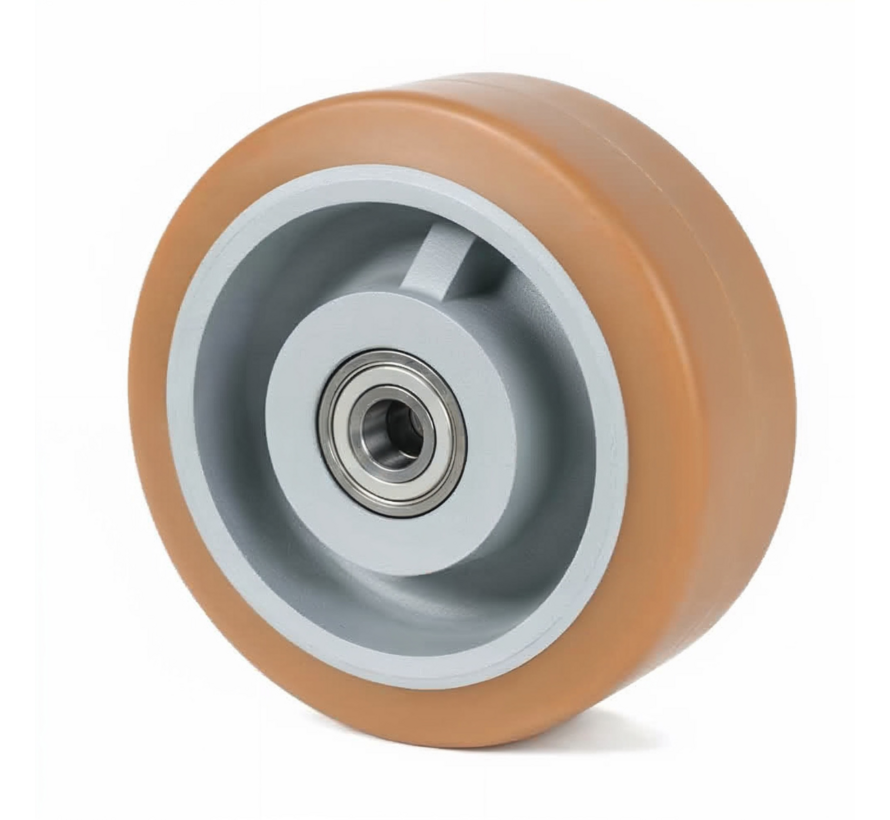

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 450mm, 50KG

Wheel: Vulkollan® Bayer tread cast iron with precision ball bearing

Vulkollan®: For intensive use where abrasion resistance and binding of the band at the core are essential!

Wheel diameter : 450mm
Width of tread: 80mm
Hub length: 80mm
Hub diameter: 140mm
Axle hole-Ø: 40mm
Load capacity (static): 2700 KG
Temperature: -40 tot +85mm
tread: Vulkollan® 92° Shore A
wheel centre: cast iron with precision ball bearing

Features: Very solid wheel with firmly bonded Bayer Vulkollan® tyre. Minimal rolling restistance and excelent rolling properties. Does not mark the floor. Shock resistant and noise reducing.

Applications: Heavy trolley, mechanical engineering, drums, wastewater treatment

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Resistant to oils, greases and various chemicals

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 450mm, 50KG

heavy duty Vulkollan® Bayer tread cast iron, precision ball bearing, Wheel-Ø 450mm, 50KG

Manufactured to order

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Manufactured to order

Product information

  • SKU 100456451I
  • EAN 8718116083498

Specifications

  • type wheel
  • wheel centre cast iron
  • tread Vulkollan®
  • bearing type precision ball bearing
  • Axle hole-Ø 40
  • Temperature -40 tot +85
  • Load capacity (static) 2700
  • Hardness of tread 92° Shore A
  • Hub diameter 140
  • Hub length 80
  • Width of tread 80
  • Wheel-Ø 450
