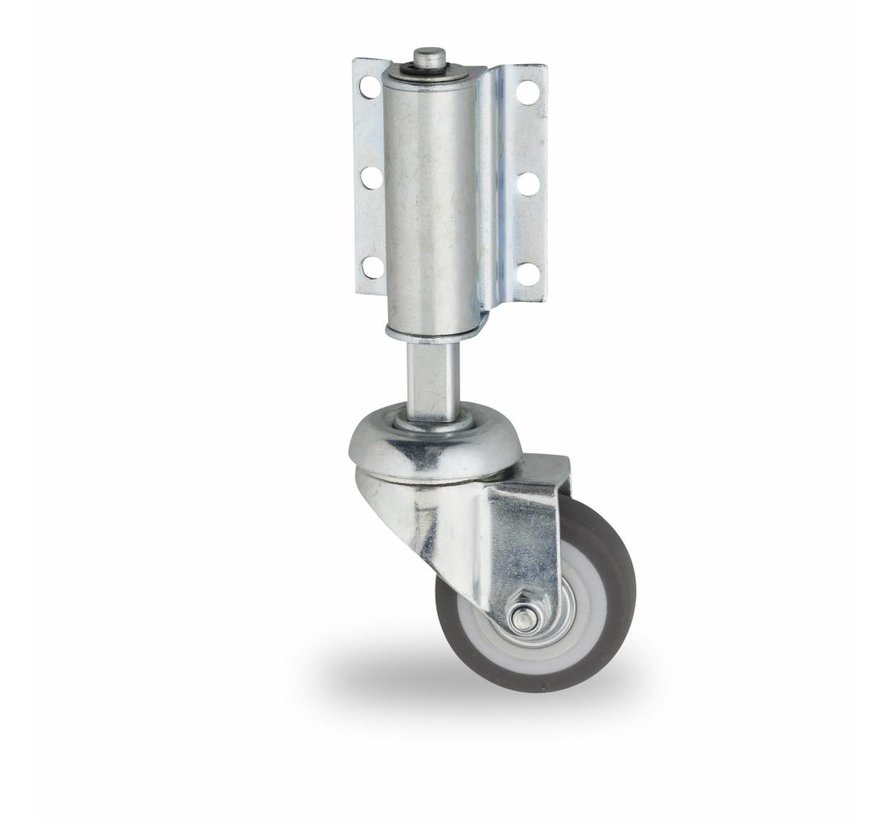

ladder wheel, ladder castor, swivel castor from pressed steel, plate fitting, thermoplastic rubber gray non-marking, cone ball bearing, Wheel-Ø 50mm, 50KG

Product description

ladder wheel, ladder castor, swivel castor, solid rubber, gray non-marking

ladder wheel  thermoplastic rubber gray non-marking swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
wheel: thermoplastic rubber gray non-marking, with wheel centre from polyamide, cone ball bearing,

Benefits: With load related locking effect. When pressure is put on the ladder, the spring deflects and the ladder rails are thus fixed on the floor.

Applications: Ladders: bias approx.2 kg. At about 17 kg load, the spring is pressed on it's maximum of 22 mm. The mounting plane can be rotated 90°.

Suitable surface: Smooth surface or with small irregularities. Non-marking tire for use on ceramic tiles, linoleum, etc.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

ladder wheel, ladder castor, swivel castor from pressed steel, plate fitting, thermoplastic rubber gray non-marking, cone ball bearing, Wheel-Ø 50mm, 50KG

ladder wheel, ladder castor, swivel castor, solid rubber, gray non-marking

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 377794500
  • EAN 8718116182986

Specifications

  • Size of plate 59,5x48
  • Overall height 150
  • housing / bracket pressed steel
  • swivel bearing double ball race in swivel head
  • Offset 25
  • Plate hole 5,3
  • Plate hole centres 38x22,5
  • type swivel castor
  • fitting top plate fitting
  • wheel centre polyamide
  • tread thermoplastic rubber gray non-marking
  • bearing type cone ball bearing
  • Load capacity (static) 50
  • Width of tread 18
  • Wheel-Ø 50
