Swivel castor with brakØ 260 x 85mm pneumatic tyre Load capacity 150kg - Industrialwheels.com

Back

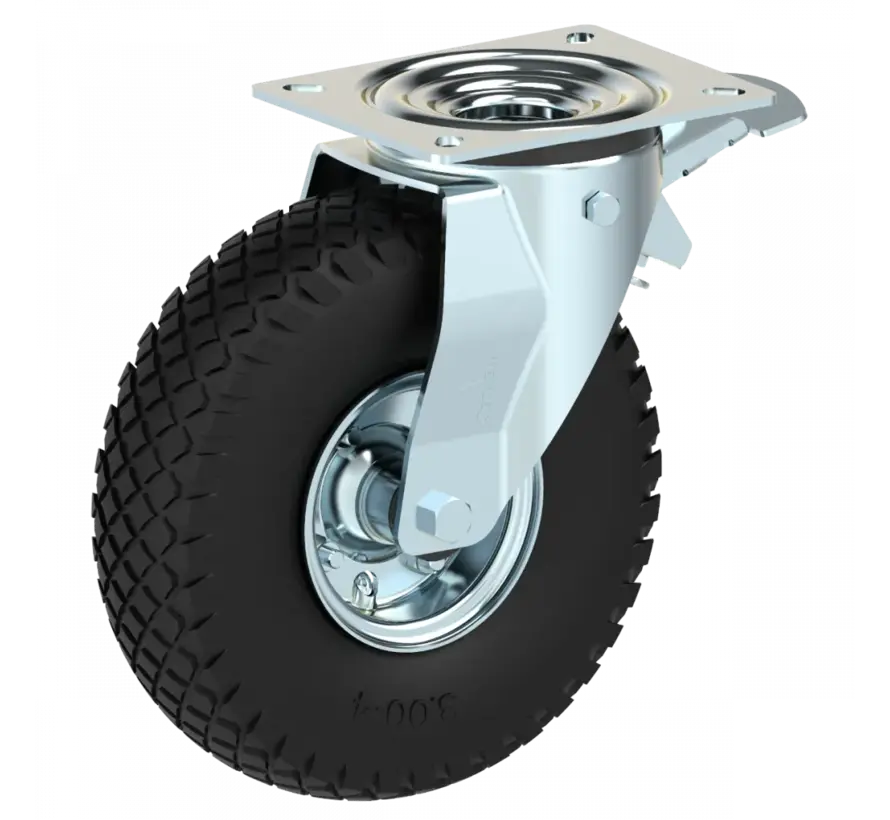

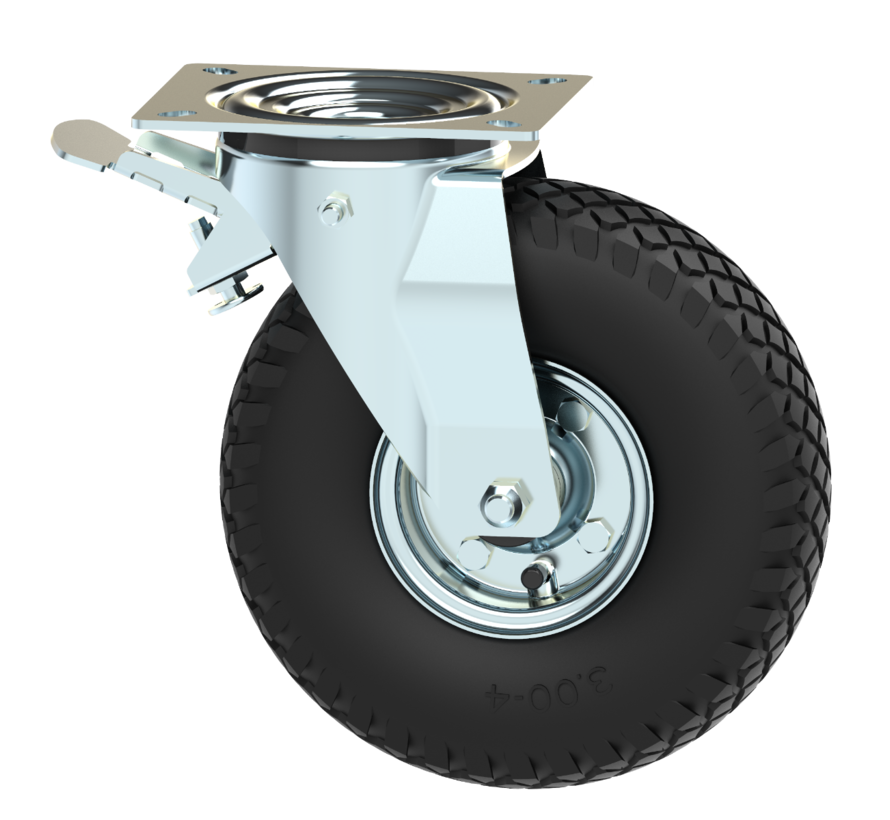

Swivel castor with brake from pressed steel, plate fitting, pneumatic tyre block profile, roller bearing, Wheel-Ø 260mm, 150KG

Product description

Swivel castor with brake from pressed steel, plate fitting, pneumatic tyre block profile, roller bearing, Wheel-Ø 260mm, 150KG





Pneumatic Swivel Castor for Industrial Use

Housing Design:

Crafted from bright zinc-plated pressed steel with a blue passivated finish, featuring a plate fitting.

Wheel Construction:

Equipped with a pneumatic tyre having a block profile. The wheel's center is made from pressed steel and incorporates a roller bearing.

Key Features:

  • Ideal for medium to heavy-duty transport, especially for products sensitive to shocks.
  • Performs exceptionally on irregular or unpaved surfaces.
  • Ensures minimal noise with excellent vibration damping.

Applications:

  • Outstanding shock absorption capabilities.
  • Smooth movement with low rolling resistance on uneven terrains.
  • Floor-friendly due to its air-cushioned design.

Best Used On:

  • Almost any kind of surface, both indoors and outdoors.
  • Uneven terrains such as cobblestones, damaged flooring, and common obstacles like thresholds.
  • Suitable for unpaved surfaces.

Environmental Suitability:

  • Best in dry, non-humid conditions.
  • Resistant to mild chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Swivel castor with brake from pressed steel, plate fitting, pneumatic tyre block profile, roller bearing, Wheel-Ø 260mm, 150KG

Swivel castor with brake from pressed steel, plate fitting, pneumatic tyre block profile, roller bearing, Wheel-Ø 260mm, 150KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146512264

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 260
  • Load capacity (kg) 150
  • Overall height (mm) 290
  • Size of top plate (mm) 175x140
  • Topplate hole centres (mm) 140x105
  • Plate hole (mm) 11
  • Offset (mm) 70
  • Swivel Radius 200.0
  • Bearing type Roller bearing
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Tyre size 3.00-4
  • Ply Rating (PR) 4.0
  • Series 46.51
  • Tread Pneumatic tyre
