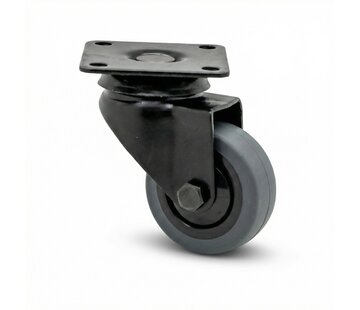

swivel castor with brake, Ø 50mm, thermoplastic rubber grey non-marking, 50KG

Product description

Institutional wheels thermoplastic (TPR) non-marking swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: thermoplastic rubber gray non-marking, with wheel centre from polypropylene, precision ball bearing,

Benefits: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low noise, shock and vibration damping. Castor for light duty applications. Less suitable for prolonged use under maximum static load.

Applications: Bedside cabinets, computer tables, display stands, dustbins, file cabinets, garment stands, greeting card dispensers, housekeeping carts, I.V.-poles, newspaper dispensers, sales counters, small furniture, sports equipment.

Suitable surface: Smooth surface or surface with small irregularities. Non-marking tire for use on ceramic tiles, linoleum, etc.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 50mm, thermoplastic rubber grey non-marking, 50KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 320884503Z
  • EAN 8718116222163

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 50
  • Load capacity (kg) 50
  • Overall height (mm) 69
  • Swivel Radius 25.0
  • Bearing type Ball bearing
  • Hardness of tread 90° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Temperature 0 / +40°C
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Bolt hole diameter 11
  • Series 32.88Z
  • Tread Solid rubber
