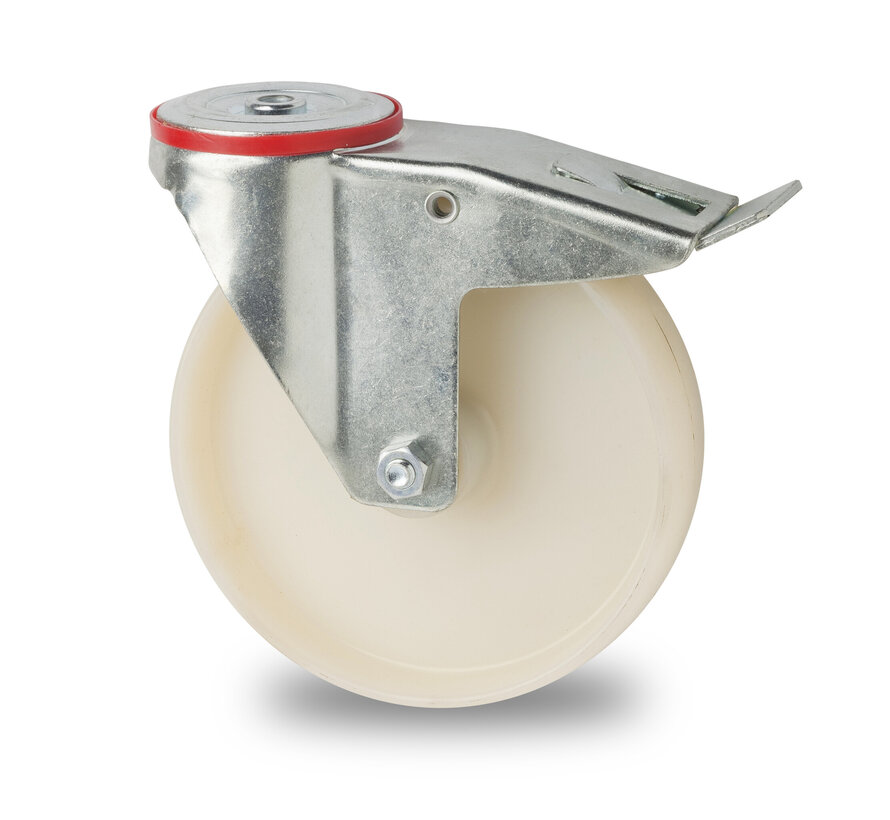

industrial swivel castor with brake from pressed steel, bolt hole, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

industrial polyamide (PA6) swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: fully nylon (PA6) wheel, roller bearing,

Benefits: The polyamide wheels have a low rolling resistance, offer good handling on smooth surfaces, they are shock and impact resistant and corrosion resistant.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Dry and not permanently humid. For many chemicals and for saturated steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

industrial swivel castor with brake from pressed steel, bolt hole, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140812203
  • EAN 8718116186380

Specifications

  • Non marking tread Yes
  • Wheel diameter 200
  • Load capacity 300
  • Overall height 235
  • Offset 60
  • Swivel Radius 160.0
  • Bearing type Roller bearing
  • Tread description Polyamide (PA6) wheels
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Bolt hole diameter 13
  • Series 40.81
  • Tread Plastic
