swivel castor with brake Ø 160 x 40mm grey rubber tyre Load capacity 180kg - Industrial Wheels - Industrialwheels.com

Back

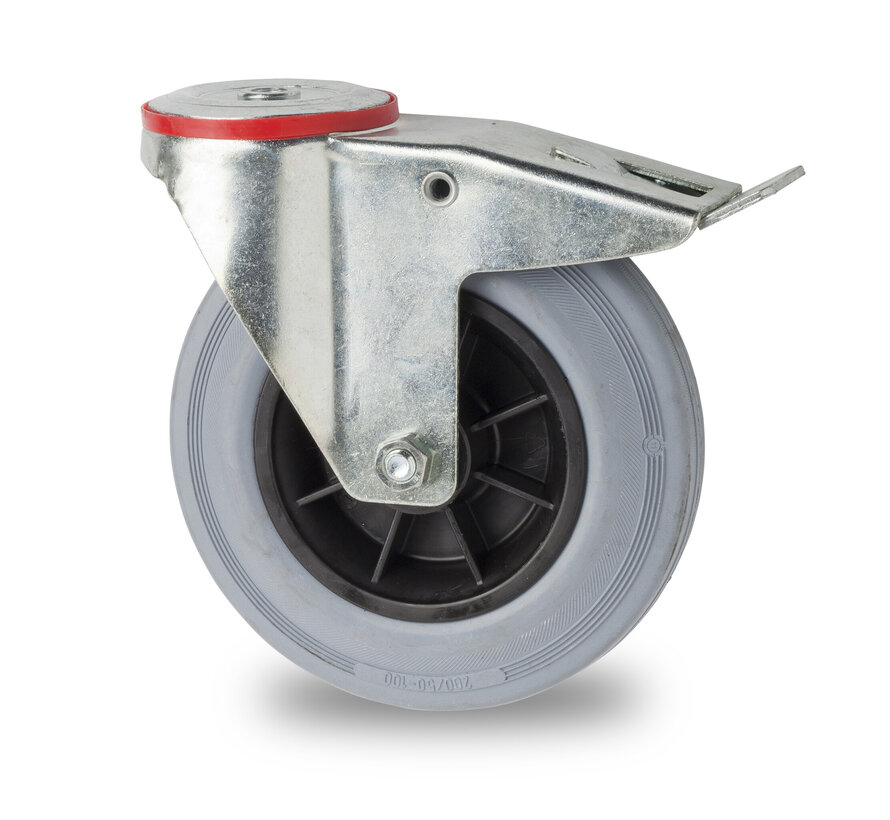

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 160mm, 180KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 160mm, 180KG

industrial polyamide wheel centre rubber, gray swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: rubber, gray, with wheel centre from polyamide, roller bearing, threadguards

Benefits: The surfaceid rubber tires have a hardness of 80 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low noise, shock and vibration damping. Castor for lightweight applications. Less suitable for prolonged use under maximum static load.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 160mm, 180KG

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 160mm, 180KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140652163
  • EAN 8718116099703

Specifications

  • Non marking tread Yes
  • Wheel diameter 160
  • Load capacity 180
  • Overall height 190
  • Offset 40
  • Swivel Radius 120.0
  • Bearing type Roller bearing
  • Hardness of tread 80° Shore A
  • Tread description Grey, non-marking, solid rubber tyre, rides silently over hard surfaces, ideal for use in offices, hospitals.
  • Temperature -20 / +60
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Bolt hole diameter 13
  • Series 40.65
  • Tread Solid rubber
