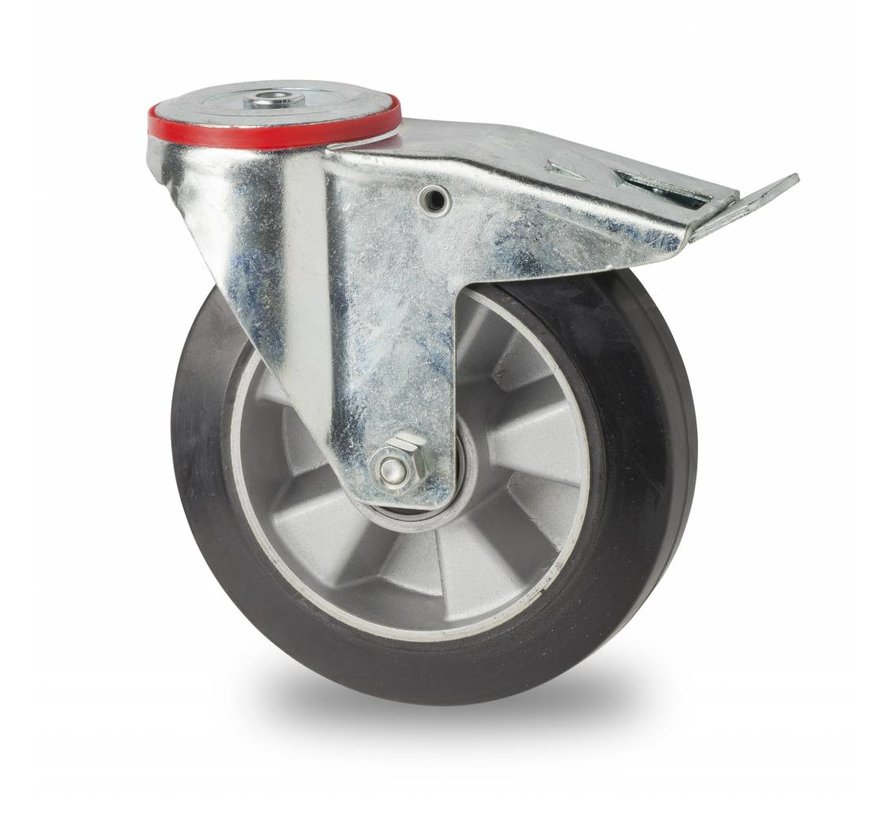

industrial swivel castor with brake from pressed steel, bolt hole, elastic-tyre, precision ball bearing, Wheel-Ø 160mm, 300KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, elastic-tyre, precision ball bearing, Wheel-Ø 160mm, 300KG

industrial elastic rubber swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: elastic-tyre, with wheel centre from aluminium, precision ball bearing,

Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds.
Suitable environment: Dry and not permanently humid. For mild chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, elastic-tyre, precision ball bearing, Wheel-Ø 160mm, 300KG

industrial swivel castor with brake from pressed steel, bolt hole, elastic-tyre, precision ball bearing, Wheel-Ø 160mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140116163
  • EAN 8718116186243

Specifications

  • housing / bracket pressed steel
  • dustguard dustguard
  • swivel bearing double ball race in swivel head
  • brake type total lock
  • Swivel Radius 132
  • Offset 52
  • type swivel castor with brake
  • fitting bolt hole
  • wheel centre Aluminium
  • tread elastic-tyre
  • bearing type precision ball bearing
  • Temperature - 20 / + 60 °C
  • Load capacity (static) 300
  • Hardness of tread 70
  • Width of tread 50
  • Wheel-Ø 160
