swivel castor with brake Ø 125 x 32mm grey rubber Load capacity 100kg - Industrial Wheels - Industrialwheels.com

Back

COVID 19: Deliveries & Manufacturing are according to planning

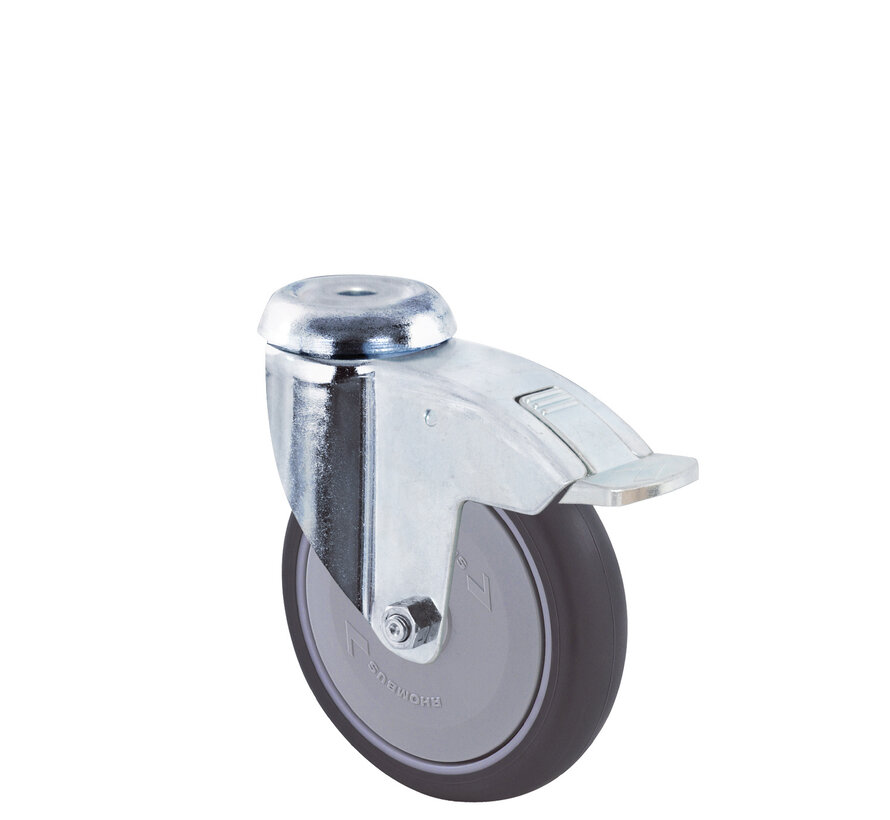

Institutional wheels swivel castor with brake from pressed steel, bolt hole, thermoplastic rubber gray non-marking, central precision ball bearing, Wheel-Ø 125mm, 100KG

Product description

Institutional wheels swivel castor with brake from pressed steel, bolt hole, thermoplastic rubber gray non-marking, central precision ball bearing, Wheel-Ø 125mm, 100KG

Institutional wheels polyamide wheel centre thermoplastic rubber gray non-marking swivel castor with brake

housing / bracket: pressed steel, bright zinc plated, blue passivated, bolt hole
wheel: thermoplastic rubber gray non-marking, with wheel centre from polyamide, central precision ball bearing,

Benefits: Top quality, with excellent rolling performance. Nylon thread guards to prevent soiling of the hub.

Applications: Food industry, professional kitchens, health care sector, display stands, shop fittings, small furniture, sales counters.

Suitable surface: Smooth surface or with small irregularities. Non-marking tire for use on ceramic tiles, linoleum, etc.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional wheels swivel castor with brake from pressed steel, bolt hole, thermoplastic rubber gray non-marking, central precision ball bearing, Wheel-Ø 125mm, 100KG

Institutional wheels swivel castor with brake from pressed steel, bolt hole, thermoplastic rubber gray non-marking, central precision ball bearing, Wheel-Ø 125mm, 100KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 330256123
  • EAN 8718116133056

Specifications

  • Overall height 154
  • housing / bracket pressed steel
  • Swivel Radius 106
  • Offset 43,5
  • Plate hole 13
  • type swivel castor with brake
  • fitting bolt hole
  • wheel centre polyamide
  • tread thermoplastic rubber gray non-marking
  • bearing type central precision ball bearing
  • Load capacity (static) 100
  • Width of tread 32
  • Wheel-Ø 125
