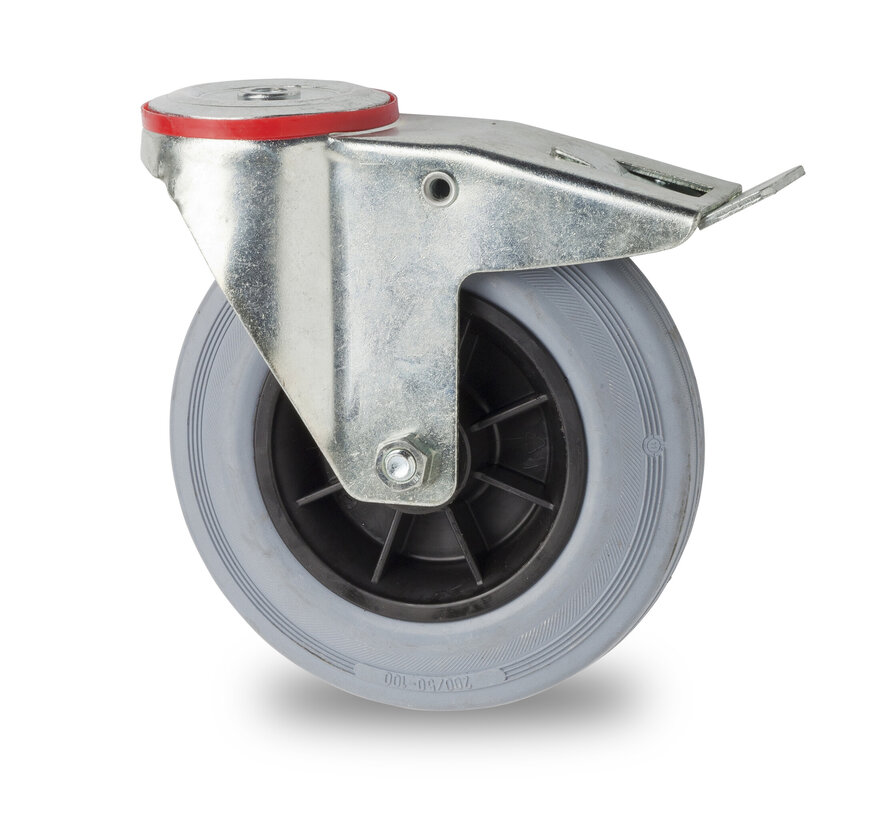

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 125mm, 130KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 125mm, 130KG

industrial polyamide wheel centre rubber, gray swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: rubber, gray, with wheel centre from polyamide, roller bearing, threadguards

Benefits: The surfaceid rubber tires have a hardness of 80 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low noise, shock and vibration damping. Castor for lightweight applications. Less suitable for prolonged use under maximum static load.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, rubber, gray, roller bearing, Wheel-Ø 125mm, 130KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • Article code 140652123
  • EAN 8718116186472

Specifications

  • type swivel castor with brake
  • Offset 40
  • Swivel Radius 102,5
  • brake type total lock
  • swivel bearing double ball race in swivel head
  • dustguard dustguard
  • housing / bracket pressed steel
  • fitting bolt hole
  • Wheel-Ø 125
  • Width of tread 37
  • Hardness of tread 80
  • Load capacity (static) 130
  • bearing type roller bearing
  • tread rubber, gray
  • wheel centre polyamide
