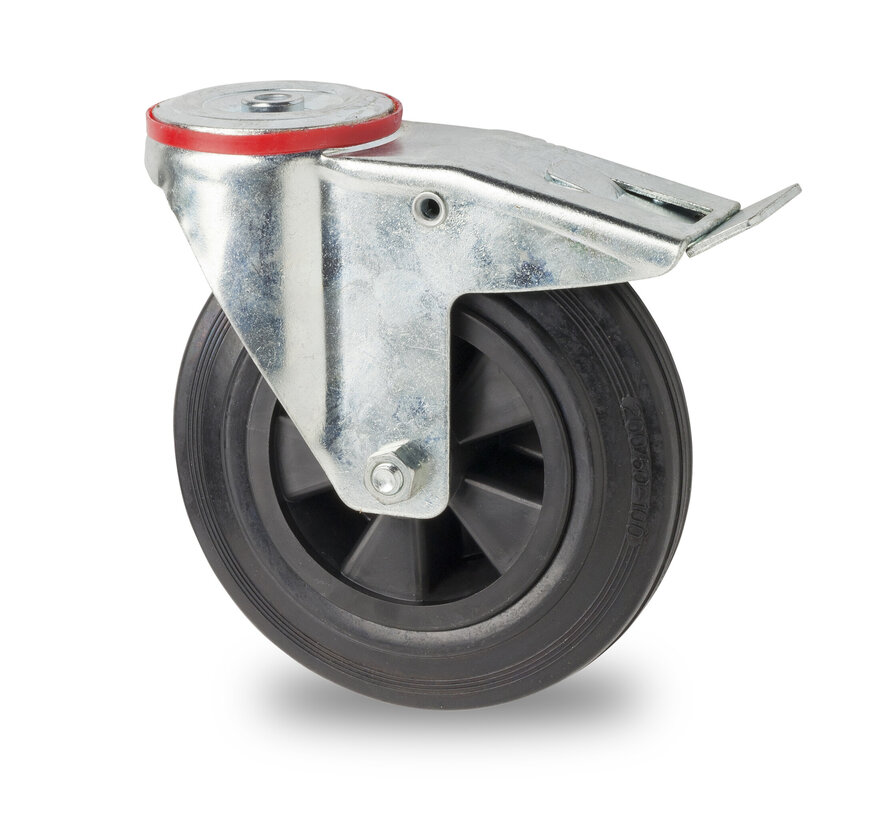

industrial swivel castor with brake from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

industrial solid rubber swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: rubber, black, with wheel centre from polyamide, roller bearing,

Benefits: The surfaceid rubber tires have a hardness of 90 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • Article code 140992123
  • EAN 8718116100157

Specifications

  • type swivel castor with brake
  • Offset 40
  • Swivel Radius 102,5
  • brake type total lock
  • swivel bearing double ball race in swivel head
  • dustguard dustguard
  • housing / bracket pressed steel
  • fitting bolt hole
  • Wheel-Ø 125
  • Width of tread 37,5
  • Hardness of tread 90
  • Load capacity (static) 100
  • Temperature - 20 / + 60 °C
  • bearing type roller bearing
  • tread rubber, black
  • wheel centre polyamide
