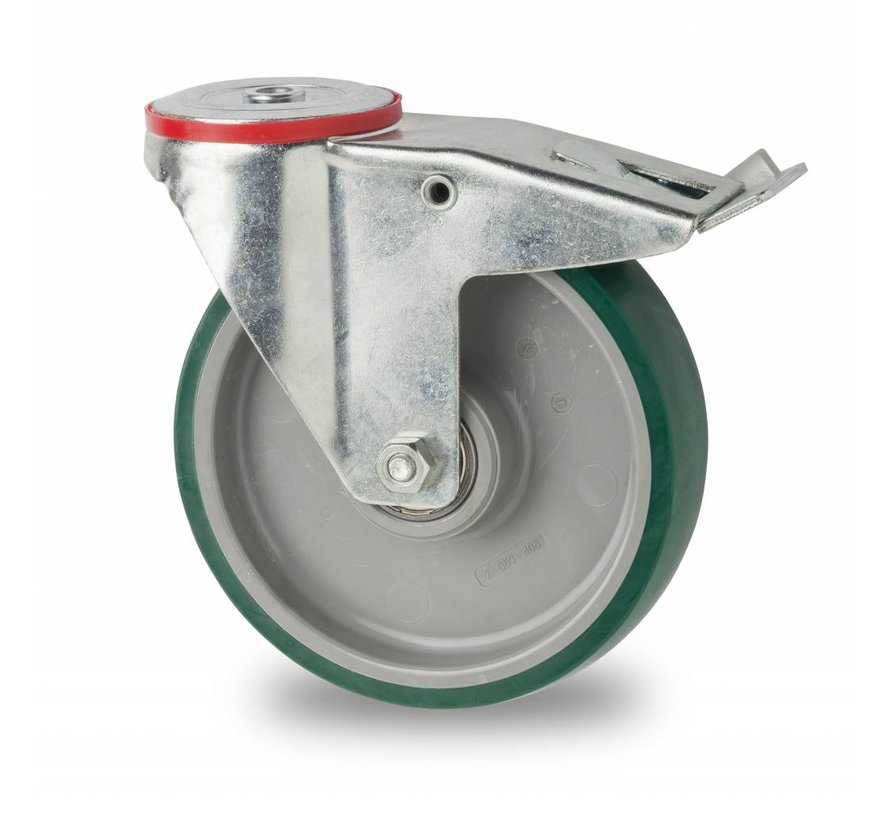

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 100mm, 150KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 100mm, 150KG

industrial polyurethane (PU) swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: injected polyurethane, with wheel centre from polyamide, precision ball bearing, threadguards

Benefits: For medium and heavy transport on slippery floors for prolonged use under static load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 100mm, 150KG

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 100mm, 150KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140986103
  • EAN 8718116100096

Specifications

  • housing / bracket pressed steel
  • dustguard dustguard
  • swivel bearing double ball race in swivel head
  • brake type total lock
  • Swivel Radius 90
  • Offset 40
  • type swivel castor with brake
  • fitting bolt hole
  • wheel centre polyamide
  • tread injected polyurethane
  • bearing type precision ball bearing
  • Temperature - 20 / + 60 °C
  • Load capacity (static) 150
  • Hardness of tread 95
  • Width of tread 30
  • Wheel-Ø 100
