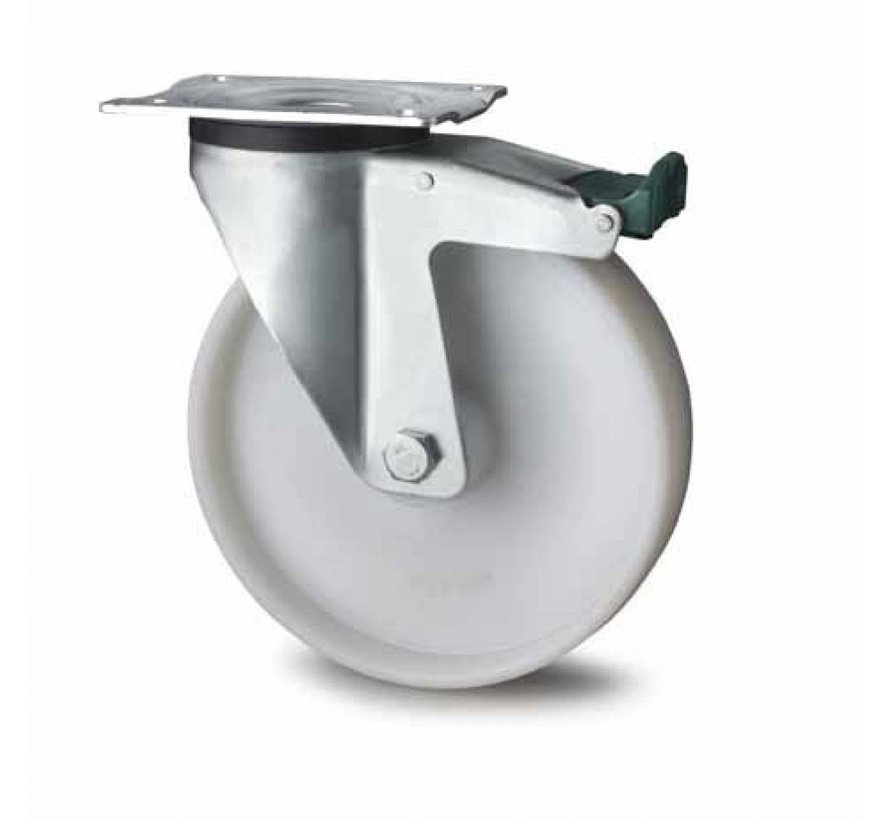

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 100mm, 200KG

Product description

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 100mm, 200KG

industrial fully nylon (PA6) wheel swivel castor with brake

housing / bracket: pressed steel, , double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
wheel: fully nylon (PA6) wheel, roller bearing,

Benefits: The polyamide wheels have a low rolling resistance, offer good handling on smooth surfaces, they are shock and impact resistant and corrosion resistant.

Applications: Metal working industry, chemical industry, trolleys.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Dry and not permanently humid. For many chemicals and for saturated steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 100mm, 200KG

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 100mm, 200KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 146302103
  • EAN 8718116102885

Specifications

  • Size of plate 105x 85
  • Overall height 128
  • housing / bracket pressed steel
  • dustguard dustguard
  • swivel bearing double ball race in swivel head
  • Swivel Radius 90
  • Offset 40
  • Plate hole 9
  • Plate hole centres 80x60
  • type swivel castor with brake
  • fitting top plate fitting
  • wheel centre polyamide
  • tread fully nylon (PA6) wheel
  • bearing type roller bearing
  • Load capacity (static) 200
  • Width of tread 35
  • Wheel-Ø 100
