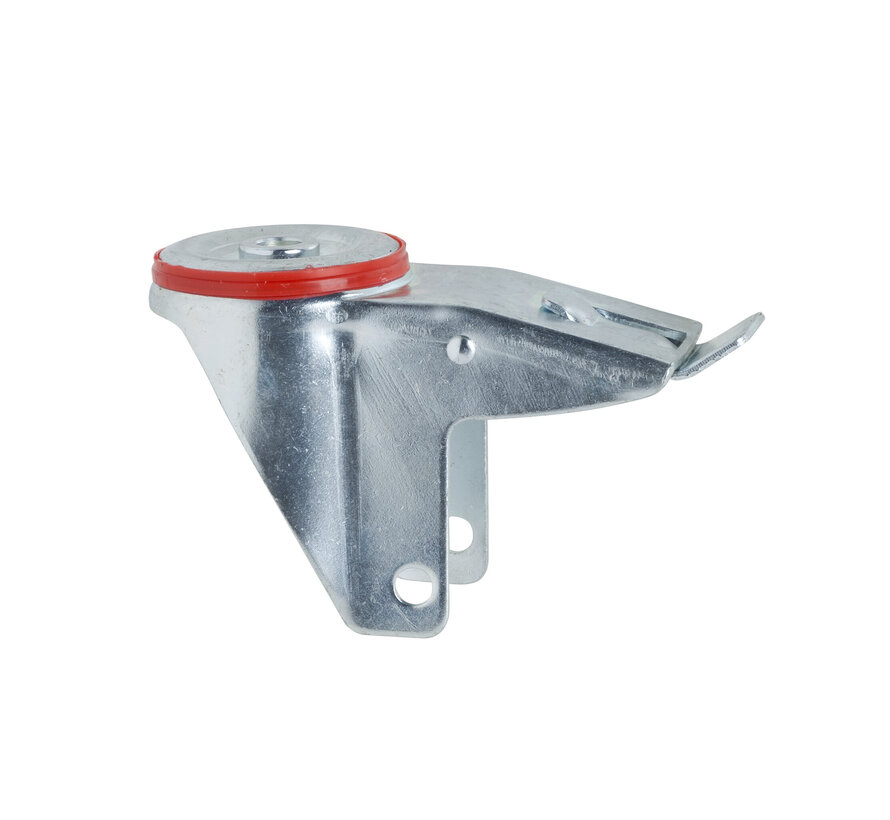

swivel castor fork with brake Ø125mm bolt hole 250KG

Product description
Quality & Service since 1946

fork

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor fork with brake Ø125mm bolt hole 250KG

fork

Quantity

We want to make your work-life easier Tooltip Just tell us what you need
Fast delivery
3D CAD Models
Engineering service

Request OE part

Download PDF

Chemical resistance

Product information

SKU 140008124
EAN 8718116099260

Specifications

Wheel diameter (mm) 125
Load capacity (kg) 250
Swivel offset (mm) 40
Fitting Bolt hole fixing
Fork material Galvanised
Fork Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
Thickness fork legs 2
Plate diameter 67
Fork width (inner) 44
Fork height 91
Bolt hole diameter 13
Axle bore-Ø in fork legs 10
Series 40008
