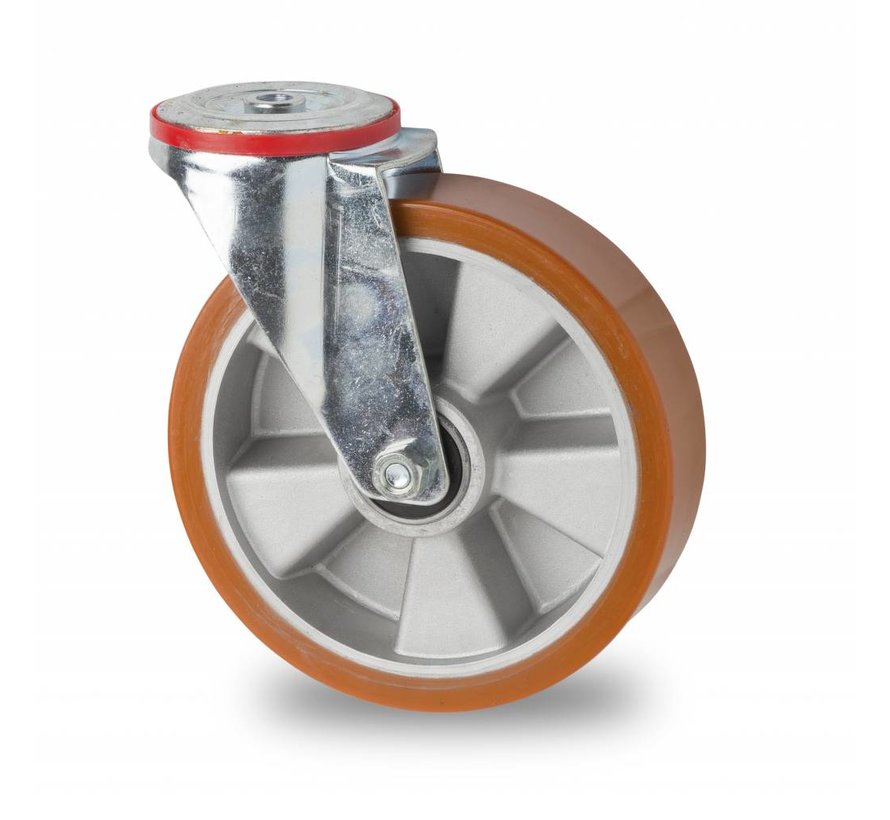

industrial swivel castor from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 400KG

Product description

industrial swivel castor from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 400KG

industrial polyurethane (PU) swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: vulcanized polyurethane tread, with wheel centre from aluminium, precision ball bearing,

Benefits: For medium heavy transport on smooth floors. Low rolling resistance. Relatively insensitive to cut and tear propagation resistance and very durable. Non-marking, quiet operation. Smooth surface, hygienic.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 400KG

industrial swivel castor from pressed steel, bolt hole, vulcanized polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 400KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140416200
  • EAN 8718116186281

Specifications

  • housing / bracket pressed steel
  • dustguard dustguard
  • swivel bearing double ball race in swivel head
  • Swivel Radius 160
  • Offset 60
  • type swivel castor
  • fitting bolt hole
  • wheel centre Aluminium
  • tread vulcanized polyurethane tread
  • bearing type precision ball bearing
  • Temperature - 20 / + 60 °C
  • Load capacity (static) 400
  • Hardness of tread 95
  • Width of tread 50
  • Wheel-Ø 200
