swivel castor Ø 125 x 375mm black rubber tyre Load capacity 100kg - Industrial Wheels - Industrialwheels.com

Back

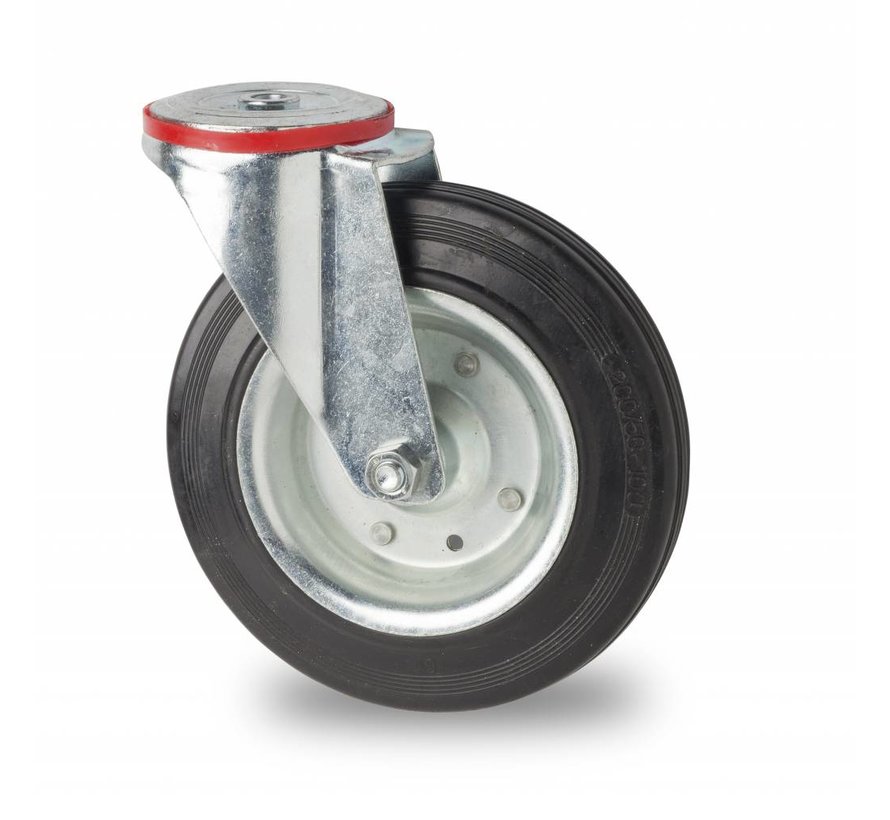

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

Product description

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

industrial solid rubber swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: rubber, black, with wheel centre from pressed steel, roller bearing, threadguards

Benefits: The surfaceid rubber tires have a hardness of 80 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 125mm, 100KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140612120
  • EAN 8718116177326

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 125
  • Load capacity (kg) 100
  • Overall height (mm) 155
  • Swivel offset (mm) 40
  • Swivel Radius 102.0
  • Bearing type Roller bearing
  • Hardness of tread 80° Shore A
  • Tread description Standard black solid rubber tyre, extremely suitable for use under transport trolleys.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Bolt hole diameter 13
  • Series 40.61
  • Tread Solid rubber
