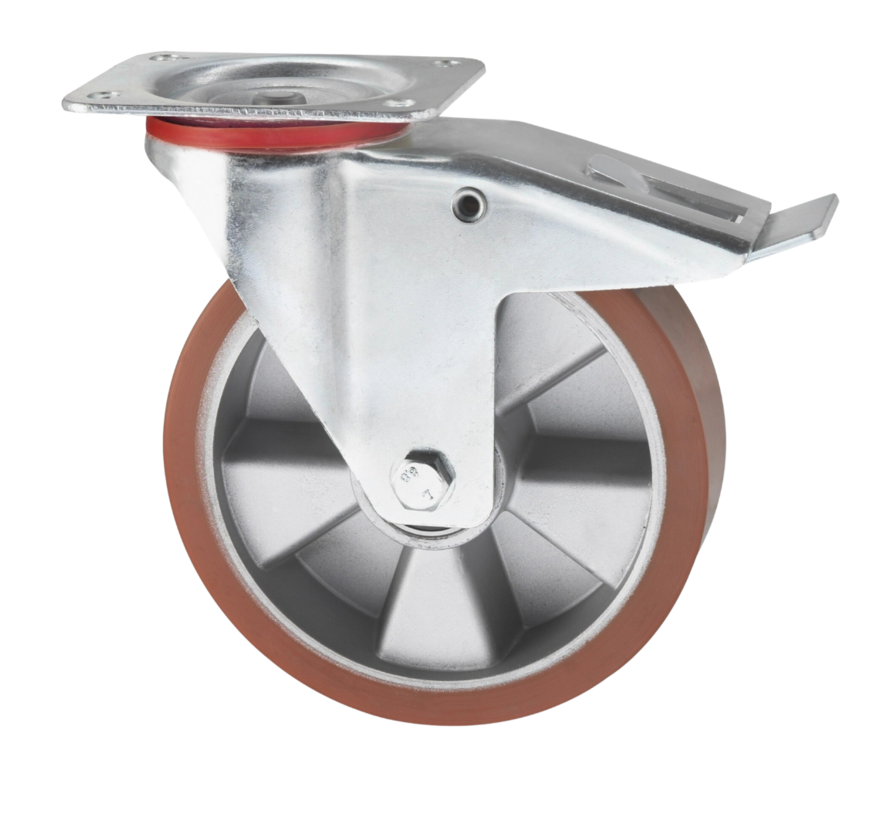

Industrial Swivel caster with brake from pressed steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 200KG

Product description

Industrial Swivel caster with brake from pressed steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 200KG

Industrial Polyurethane (PU) Swivel caster with brake

Housing: pressed steel, Total lock, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: Vulcanized Polyurethane tread, with Wheel centre from Aluminium, precision ball bearing,

Features: For medium heavy transport on smooth floors. Low rolling resistance. Relatively insensitive to cut and tear propagation resistance and very durable. Non-marking, quiet operation. Smooth surface, hygienic.

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Swivel caster with brake from pressed steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 200KG

Industrial Swivel caster with brake from pressed steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146416124
  • EAN 8718116103592

Specifications

  • Non marking tread Yes
  • Wheel diameter 125
  • Load capacity 200
  • Overall height 155
  • Size of top plate 105x 80
  • Topplate hole centres 80x60
  • Plate hole 9
  • Offset 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with vulcanised polyurethane tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Series 46.41
  • Tread Polyurethane
