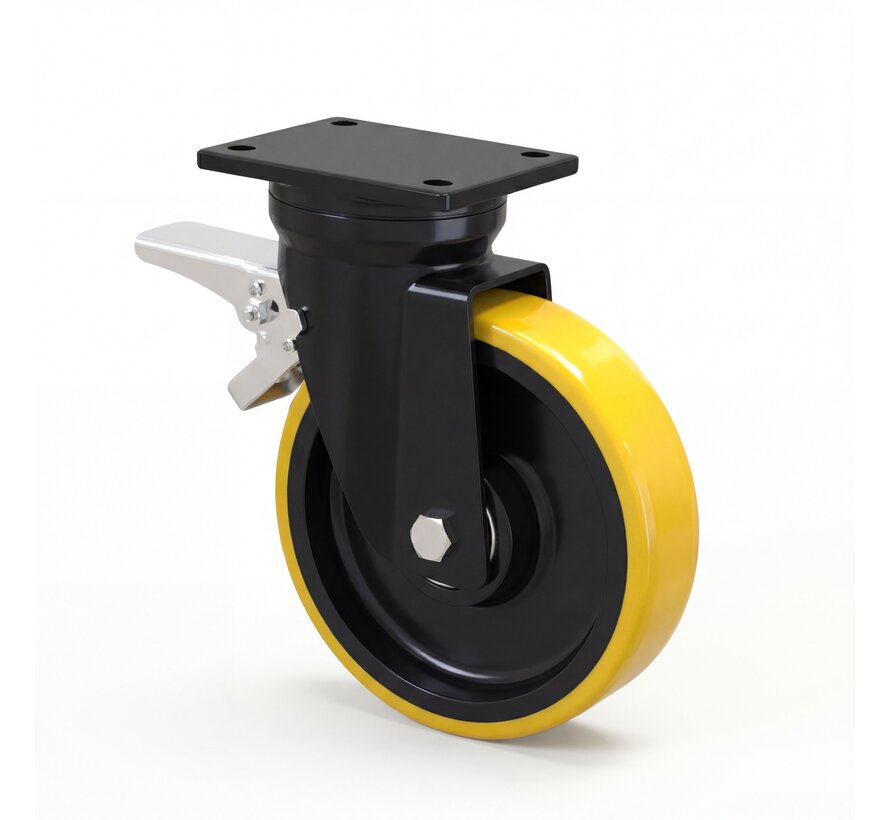

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 250KG

Product description

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 250KG

Heavy duty Polyurethane (PU) Swivel caster with brake

Housing: Welded steel housing, Total lock, with dual purpose bearing and tapered roller bearing, Painted black, plate fitting
Wheel: Vulcanized Polyurethane tread, with Wheel centre from cast iron, precision ball bearing,

Features: For transport of very heavy loads on smooth floors. Low rolling resistance. Abrasion-resistant, high cut and tear propagation resistance and very durable

Applications: Heavy material handling, heavy containers, Automobile factories, Petrochemical plants, heavy transportation, Ports, Armed forces, Aviation, Bridge cranes, Metal, chemical companies.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Permanently dry and not humid. For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 250KG

Heavy duty Swivel caster brake from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 100mm, 250KG

Manufactured to order

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: Manufactured to order

Product information

  • SKU 103646103

Specifications

  • Size of plate 100x 85
  • Overall height 150
  • housing / bracket welded steel housing
  • dustguard dustguard
  • swivel bearing with dual purpose bearing and tapered roller bearing
  • brake type total lock
  • Swivel Radius 86
  • Offset 36
  • Plate hole 11
  • Plate hole centres 80x60
  • type swivel castor with brake
  • fitting top plate fitting
  • wheel centre cast iron
  • tread vulcanized polyurethane tread
  • bearing type precision ball bearing
  • Temperature -20 ÷ +85
  • Load capacity (static) 250
  • Hardness of tread 91
  • Width of tread 30
  • Wheel-Ø 100
