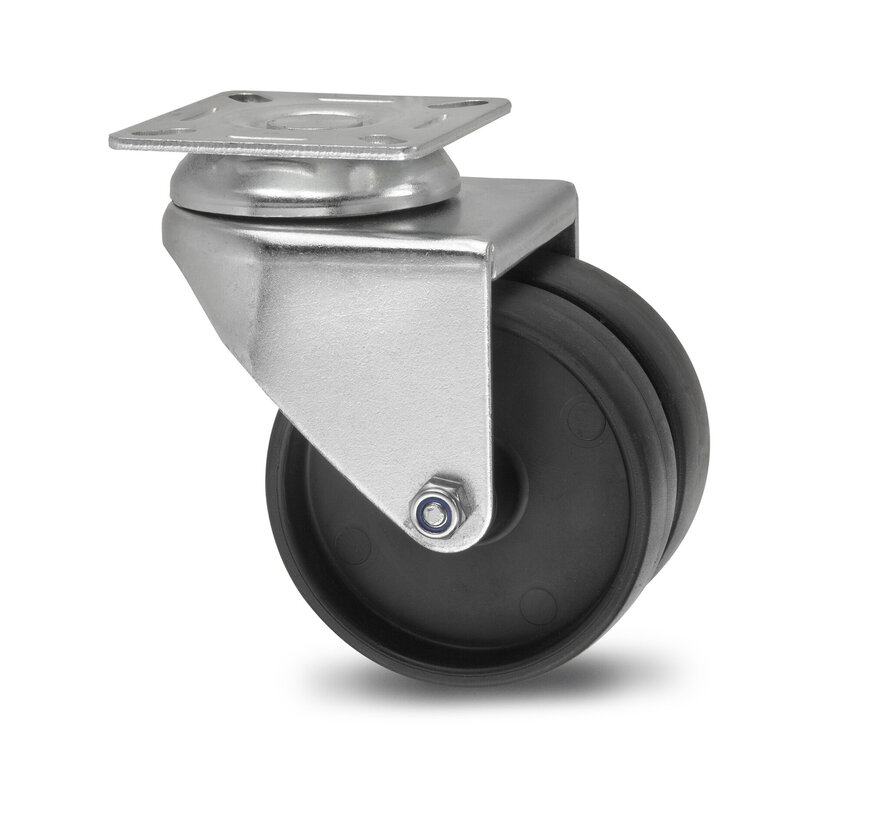

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 75mm, 100KG

Product description

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 75mm, 100KG

Institutional thermoplastic (TPR) non-marking Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: Polypropylene Wheel, with Wheel centre from Polypropylene, plain bearing, double castors

Features: Versatile wheel for use on a flat surface. Dual wheels for a high load capacity at a low overall height

Applications: Excellent for static applications under load, such as heavier cabinets, freezers, etc.

Suitable surface: Smooth surface without any obstacles.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 75mm, 100KG

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 75mm, 100KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 346820750
  • EAN 8718116134244

Specifications

  • Size of plate 60x60
  • Overall height 99
  • housing / bracket pressed steel
  • twin wheel castors twin wheel castors
  • swivel bearing double ball race in swivel head
  • Swivel Radius 70,5
  • Offset 33
  • Plate hole 6,2
  • Plate hole centres 42x42
  • type swivel castor
  • fitting top plate fitting
  • wheel centre Polypropylene
  • tread polypropylene wheel
  • bearing type plain bearing
  • Load capacity (static) 100
  • Width of tread 2x24
  • Wheel-Ø 75
