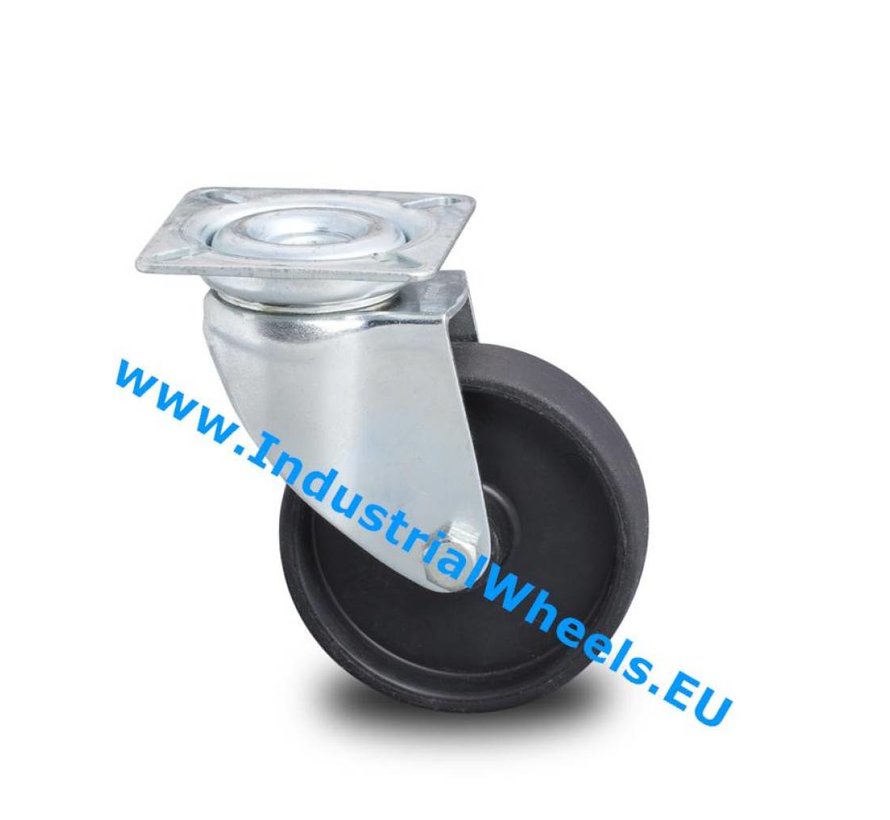

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 40KG

Product description

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 40KG

Institutional Polypropylene PP Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: Polypropylene Wheel, with Wheel centre from Polypropylene, plain bearing,

Features: Versatile wheel for use on a flat surface. Excellent for static applications under load.

Applications: Versatile wheel for use on a flat surface. Excellent for static applications under load.

Suitable surface: Smooth surface without any obstacles.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 40KG

Institutional Swivel caster from pressed steel, plate fitting, Polypropylene Wheel, plain bearing, Wheel-Ø 50mm, 40KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 326820500
  • EAN 8718116132530

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 50
  • Load capacity (kg) 40
  • Overall height (mm) 71
  • Size of top plate (mm) 60x60
  • Topplate hole centres (mm) 42x42
  • Mounting hole diameter (mm) 6
  • Swivel offset (mm) 25
  • Swivel Radius 50.0
  • Bearing type Sliding bearing
  • Tread description Polypropylene wheels
  • Temperature 0 / +40°C
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Series 32.82
  • Tread Plastic
