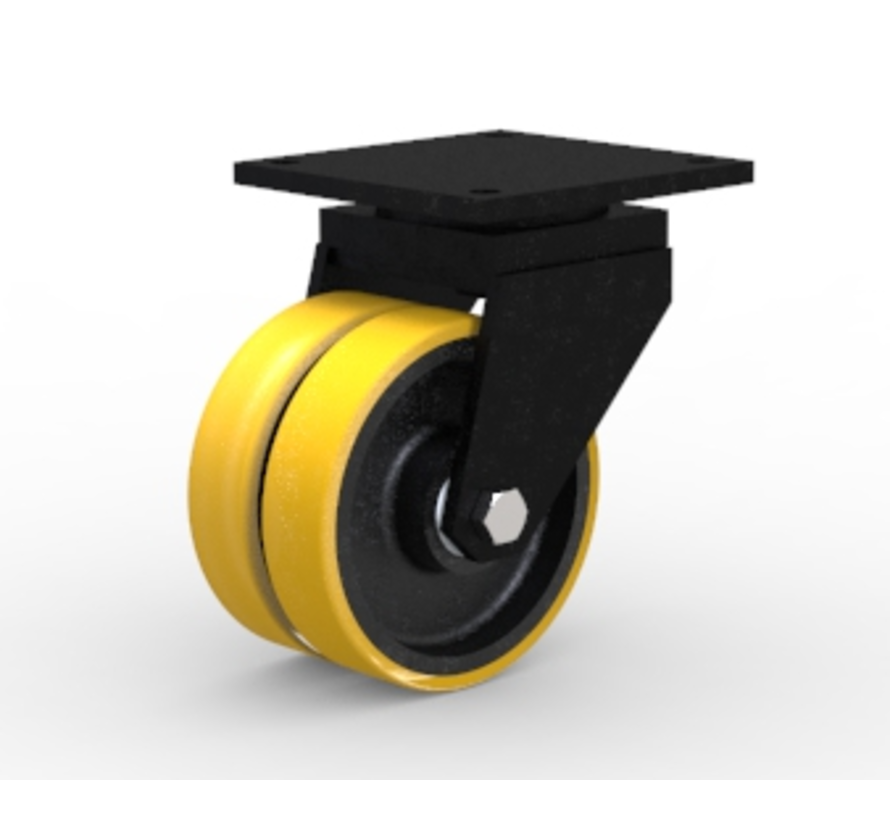

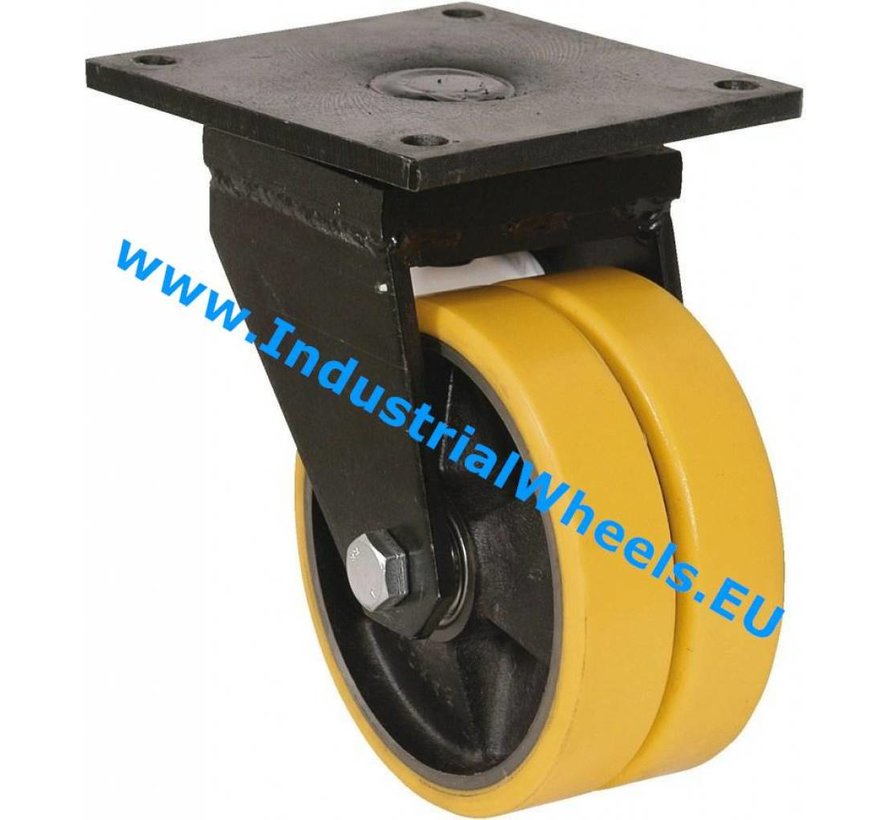

Heavy duty Swivel caster from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 1600KG

Product description

Heavy duty Swivel caster from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 1600KG

Heavy duty Polyurethane (PU) Swivel caster

Housing: Welded steel housing, sealed swivel bearing with dual purpose bearing and tapered roller bearing, grease nipple Painted black, plate fitting
Wheel: Vulcanized Polyurethane tread, with Wheel centre from cast iron, precision ball bearing, double castors

Features: For transport of very heavy loads on smooth floors. Low rolling resistance. Abrasion-resistant, high cut and tear propagation resistance and very durable

Applications: Heavy material handling, heavy containers, Automobile factories, Petrochemical plants, heavy transportation, Ports, Armed forces, Aviation, Bridge cranes, Metal, chemical companies.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Permanently dry and not humid. For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Heavy duty Swivel caster from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 1600KG

Heavy duty Swivel caster from Welded steel housing, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 200mm, 1600KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 127646200
  • EAN 8718116098652

Specifications

  • Size of plate 200x200
  • Overall height 270
  • housing / bracket welded steel housing
  • twin wheel castors twin wheel castors
  • dustguard dustguard
  • swivel bearing sealed swivel bearing with dual purpose bearing and tapered roller bearing
  • grease nipple smeernippel
  • Swivel Radius 172
  • Offset 72
  • Plate hole 17
  • Plate hole centres 160x160
  • type swivel castor
  • fitting top plate fitting
  • wheel centre cast iron
  • tread vulcanized polyurethane tread
  • bearing type precision ball bearing
  • Temperature -20 ÷ +85
  • Load capacity (static) 1600
  • Hardness of tread 91
  • Width of tread 2x40
  • Wheel-Ø 200
