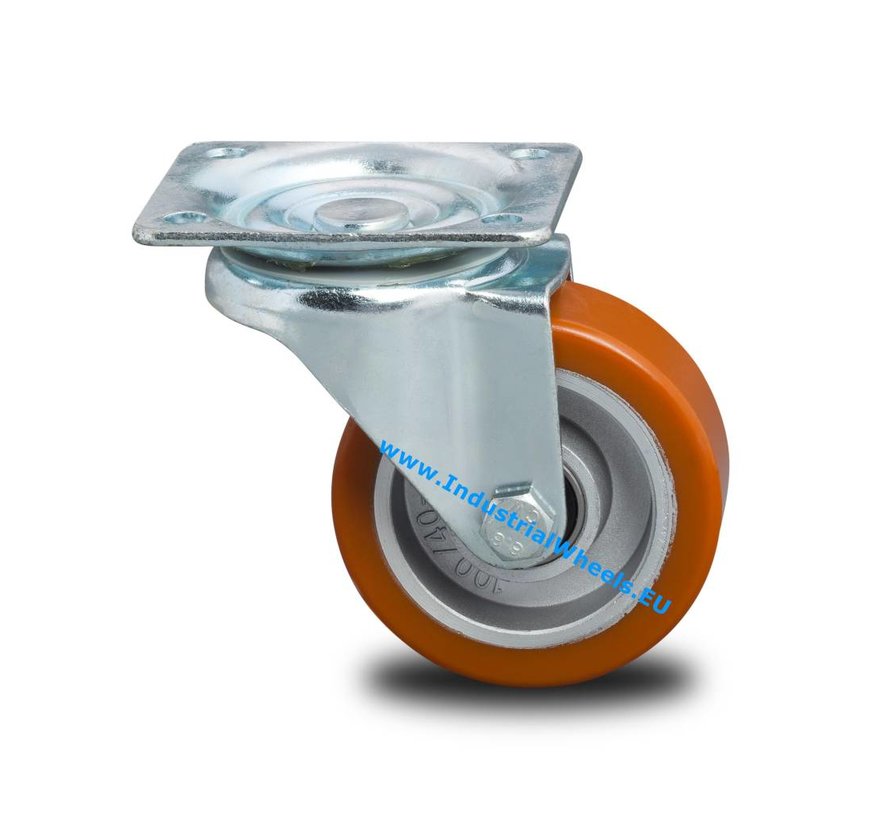

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 250KG

Product description

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 250KG

Industrial Reinforced Housing Polyurethane (PU) Swivel caster

Housing: Pressed hard steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: Vulcanized Polyurethane tread, with Wheel centre from Aluminium, precision ball bearing,

Features: For medium heavy transport on smooth floors. Low rolling resistance. Relatively insensitive to cut and tear propagation resistance and very durable. Non-marking, quiet operation. Smooth surface, hygienic.

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Permanently dry and not humid. For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 250KG

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, Vulcanized Polyurethane tread, precision ball bearing, Wheel-Ø 125mm, 250KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 184416120
  • EAN 8718116109402

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 125
  • Load capacity (kg) 250
  • Overall height (mm) 155
  • Size of top plate (mm) 105x86
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 8
  • Swivel offset (mm) 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 95° Shore A
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Series 84.41
  • Tread Polyurethane
