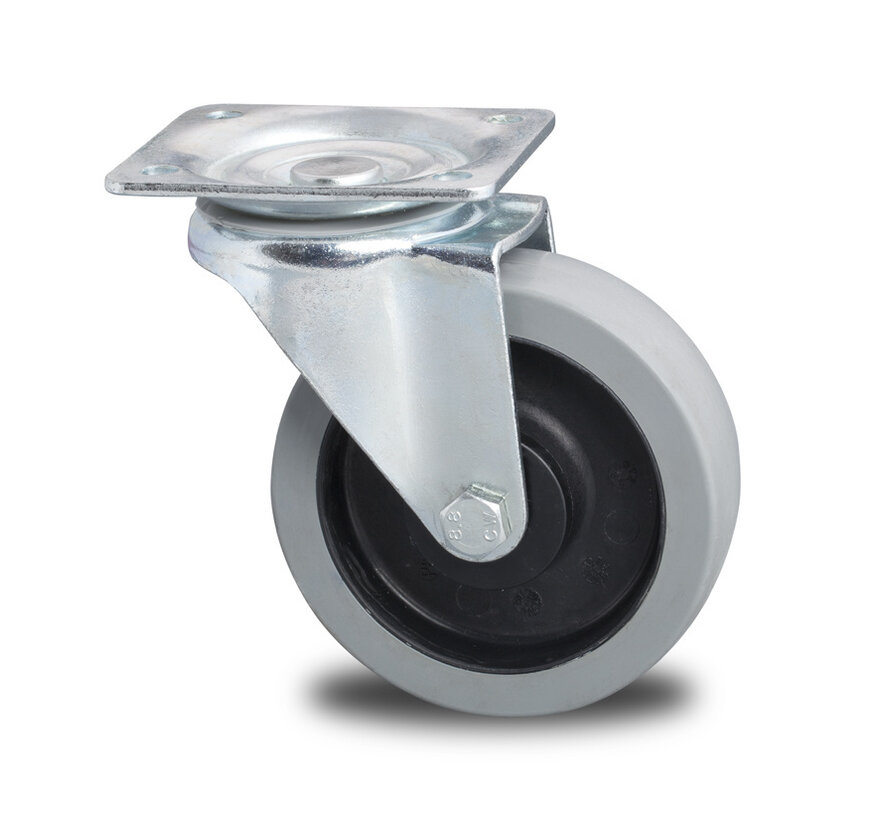

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 125mm, 200KG

Product description

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 125mm, 200KG

Industrial Reinforced Housing elastic rubber Swivel caster

Housing: Pressed hard steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Polyamide, roller bearing, threadguards with labyrinth seal

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Dry and not permanently wet. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 125mm, 200KG

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, elastic-tyre, roller bearing, Wheel-Ø 125mm, 200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 184568120
  • EAN 8718116177906

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 125
  • Load capacity (kg) 200
  • Overall height (mm) 155
  • Size of top plate (mm) 105x85
  • Topplate hole centres (mm) 80x60
  • Plate hole (mm) 8
  • Offset (mm) 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swing fork for intensive industrial use with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Series 84.56
  • Tread Solid rubber
