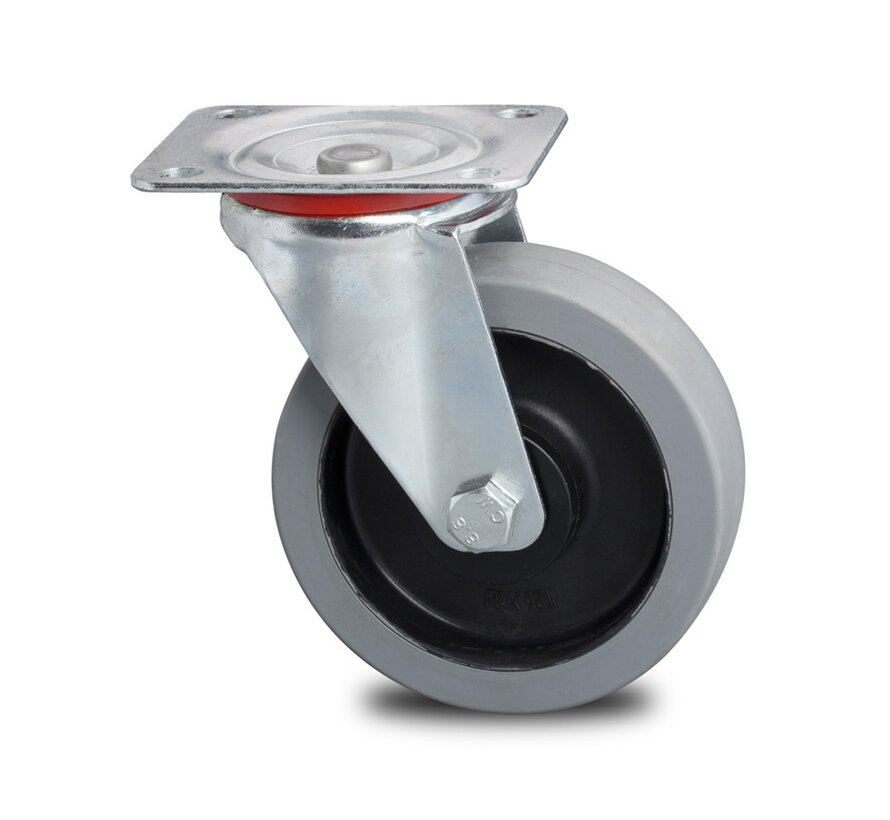

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Product description

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Industrial elastic rubber Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Polyamide, 2-RS precision ball bearings, threadguards with labyrinth seal

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Flight case, Roll cage caster, Trolleys for Industrial Handling, Flightcase, Theater & Entertainment, blue elastic rubber

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Dry and not permanently wet. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146566120G
  • EAN 8718116104186

Specifications

  • Non marking tread Yes
  • Wheel diameter 125
  • Load capacity 200
  • Overall height 155
  • Size of top plate 105x85
  • Topplate hole centres 80x60
  • Plate hole 9
  • Offset 40
  • Swivel Radius 102.0
  • Bearing type Ball bearing
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Transport wheel Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Series 46.56G
  • Tread Solid rubber
