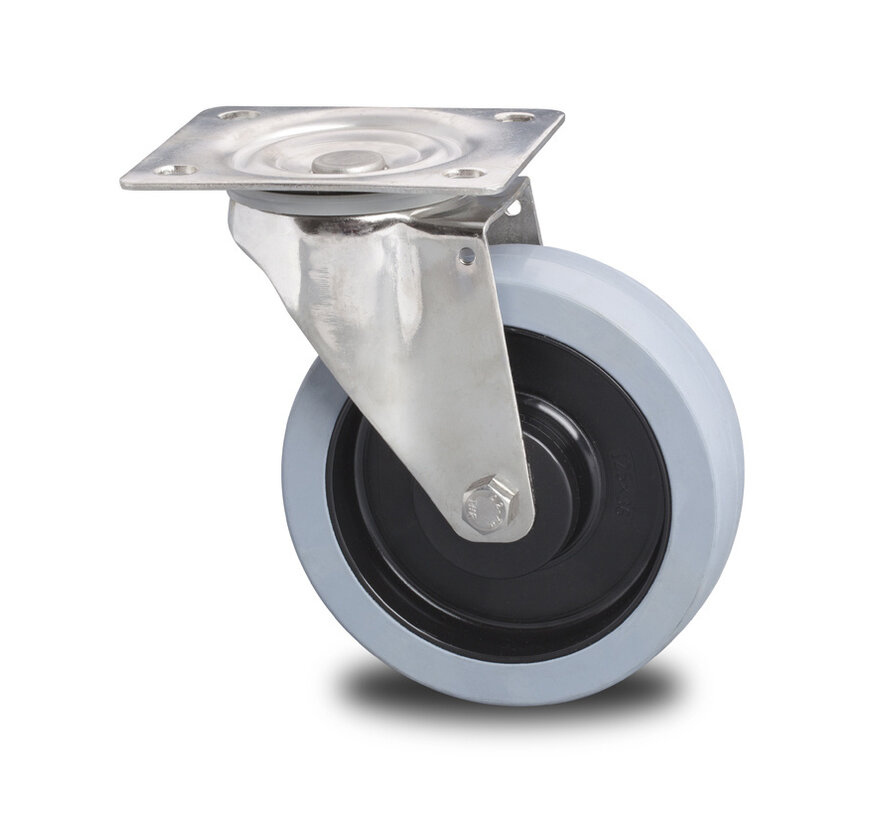

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 100mm, 150KG

Product description

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 100mm, 150KG

Stainless Steel elastic rubber Swivel caster

Housing: Stainless Steel Pressed, double ball race in swivel head, stainless steel AISI 304, plate fitting
Wheel: Vulcanized elastic rubber tires, with Wheel centre from Polyamide, 2-RS precision ball bearings, threadguards with labyrinth seal

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Food processing industry, Laundry carts, pharmaceutical industry, hospitality, food transportation means, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotel, restaurant, catering, cafe, fish processors, supermarkets,

Suitable surface:
Suitable environment: Dry and wet environment. For chemicals and saturated steam

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 100mm, 150KG

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 100mm, 150KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 196568100G
  • EAN 8718116179825

Specifications

  • Size of plate 105x 85
  • Overall height 128
  • housing / bracket stainless steel pressed
  • dustguard dustguard
  • swivel bearing double ball race in swivel head
  • Swivel Radius 90
  • Offset 40
  • Plate hole 9
  • Plate hole centres 80x60
  • type swivel castor
  • fitting top plate fitting
  • wheel centre polyamide
  • tread vulcanized elastic rubber tires
  • bearing type 2-RS precision ball bearings
  • Load capacity (static) 150
  • Hardness of tread 80
  • Width of tread 30
  • Wheel-Ø 100
