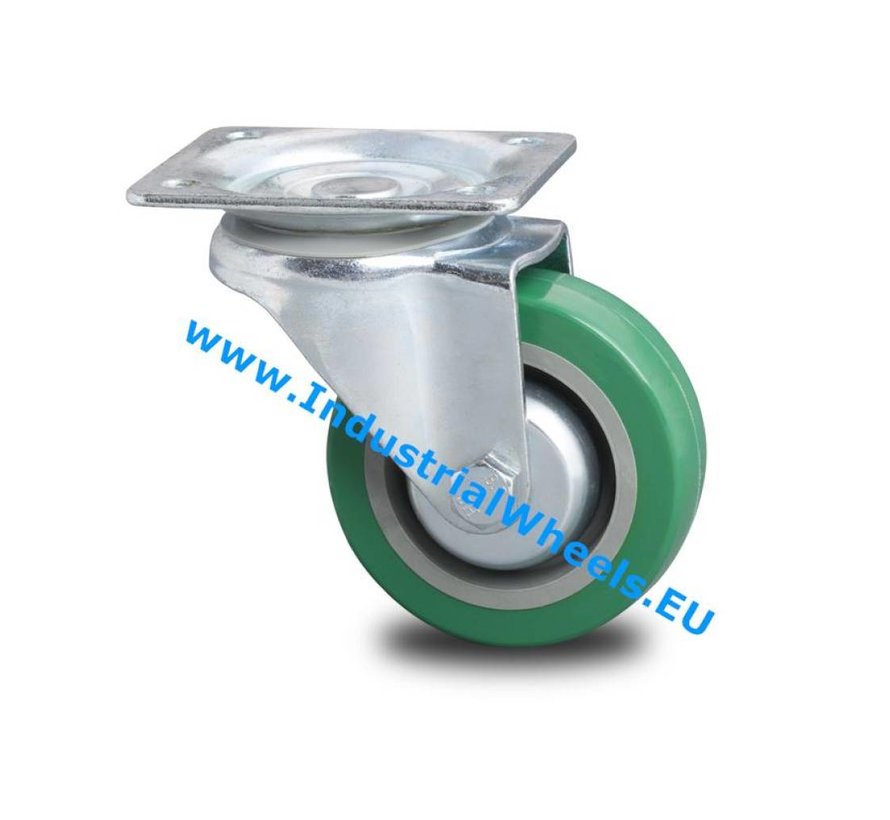

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, polyurethane-tyre, roller bearing, Wheel-Ø 100mm, 250KG

Product description

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, polyurethane-tyre, roller bearing, Wheel-Ø 100mm, 250KG

Industrial Reinforced Housing elastic rubber Swivel caster

Housing: Pressed hard steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: polyurethane-tyre, with Wheel centre from Polyamide, roller bearing, with small threadguards

Features: For medium heavy transport on smooth floors. Low rolling resistance. Relatively insensitive to cut and tear propagation resistance and very durable. Non-marking, quiet operation. Smooth surface, hygienic.

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Dry and not permanently wet. With weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, polyurethane-tyre, roller bearing, Wheel-Ø 100mm, 250KG

Industrial Reinforced Housing Swivel caster from Pressed hard steel, plate fitting, polyurethane-tyre, roller bearing, Wheel-Ø 100mm, 250KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 184792106K
  • EAN 8718116109730

Specifications

  • Size of plate 105x86
  • Overall height 128
  • Swivel Radius 90
  • Offset 40
  • Plate hole 8
  • Plate hole centres 80x60
  • type swivel castor
  • fitting top plate fitting
  • wheel centre polyamide
  • tread injected polyurethane
  • bearing type roller bearing
  • Load capacity (static) 250
  • Hardness of tread 95
  • Width of tread 35
  • Wheel-Ø 100
