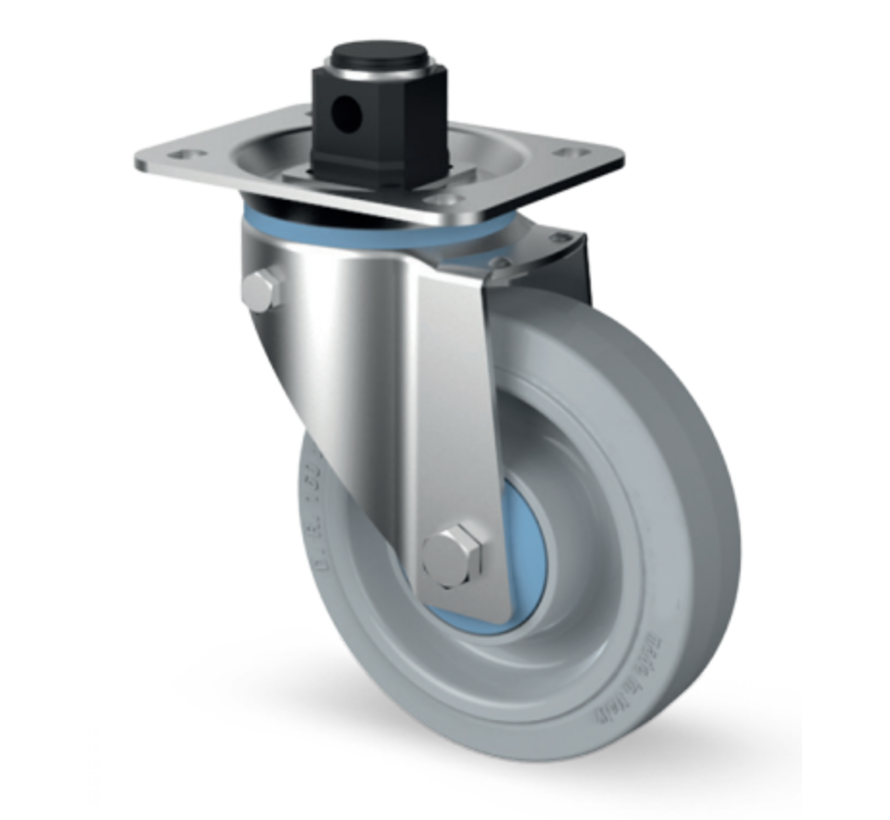

Stainless steel swivel castor with central braking system, 125mm wheel diameter
Stainless steel swivel castor with central braking system, 125 mm diameter wheel
Stainless steel swivel castor with central braking system, 125 mm diameter wheel
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU Custom-ML667-01
Specifications
- Non marking tread Yes
- Wheel diameter (mm) 125
- Load capacity (kg) 300
- Overall height (mm) 165
- Size of top plate (mm) 140x110
- Topplate hole centres (mm) 105x80
- Mounting hole diameter (mm) 11
- Hardness of tread 59 Shore D
- Swivel offset (mm) 55
- Swivel Radius 117
- Castor wheel type Swivel castor with central brake
- Fitting Plate mounting
- Fork material Stainless steel AISI 304

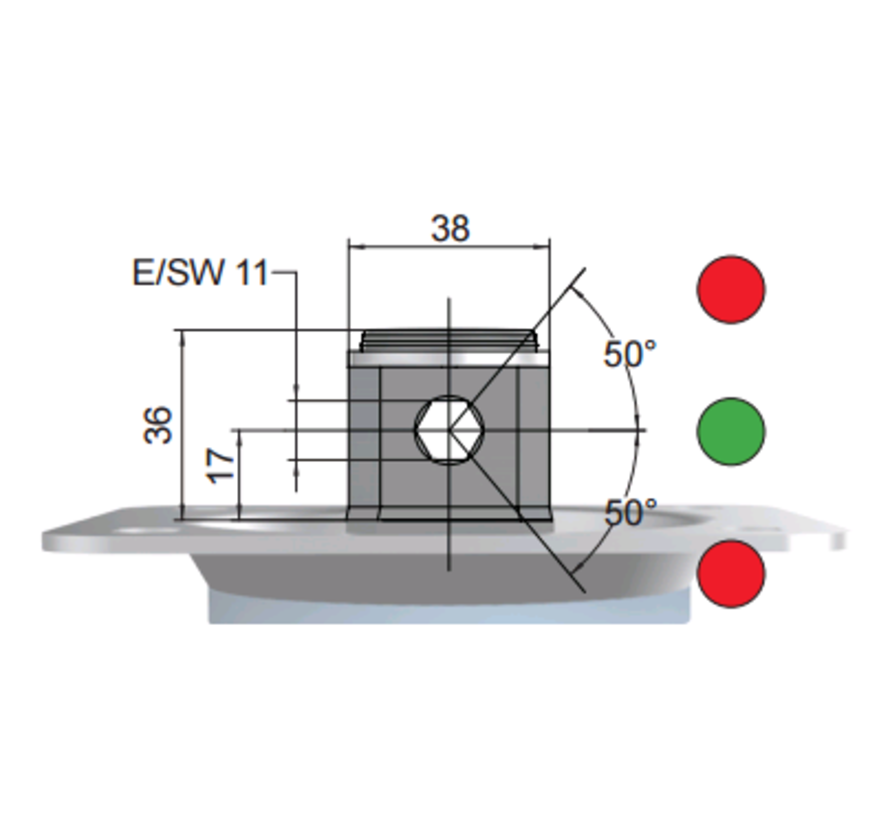

- Brake Brake blocks both the turning and swivelling movement of the wheel
