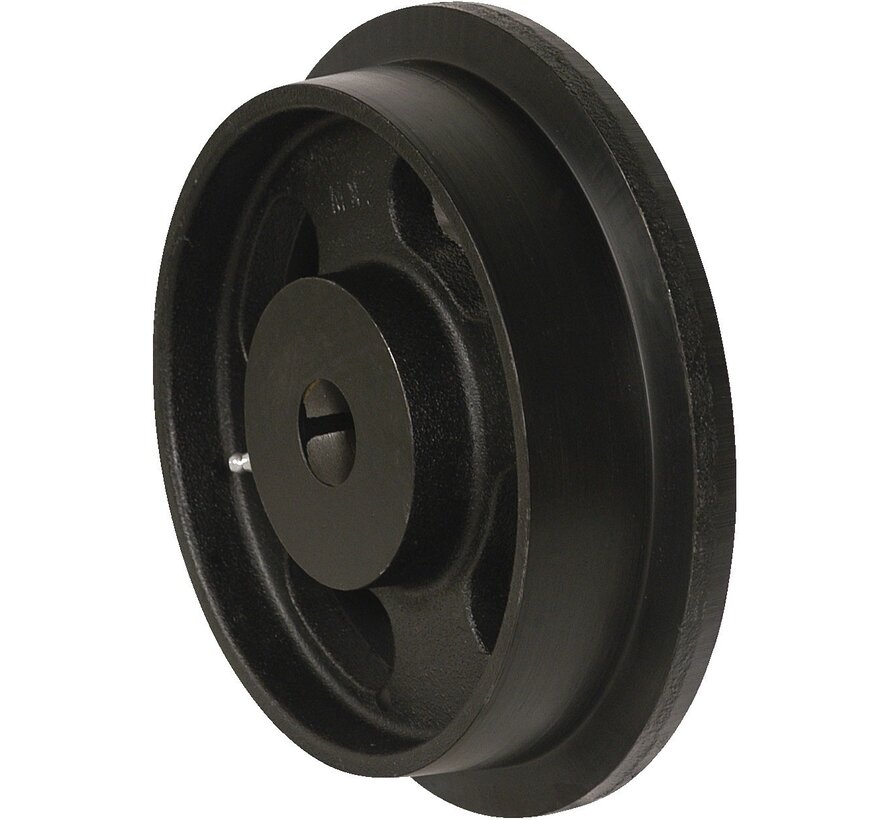

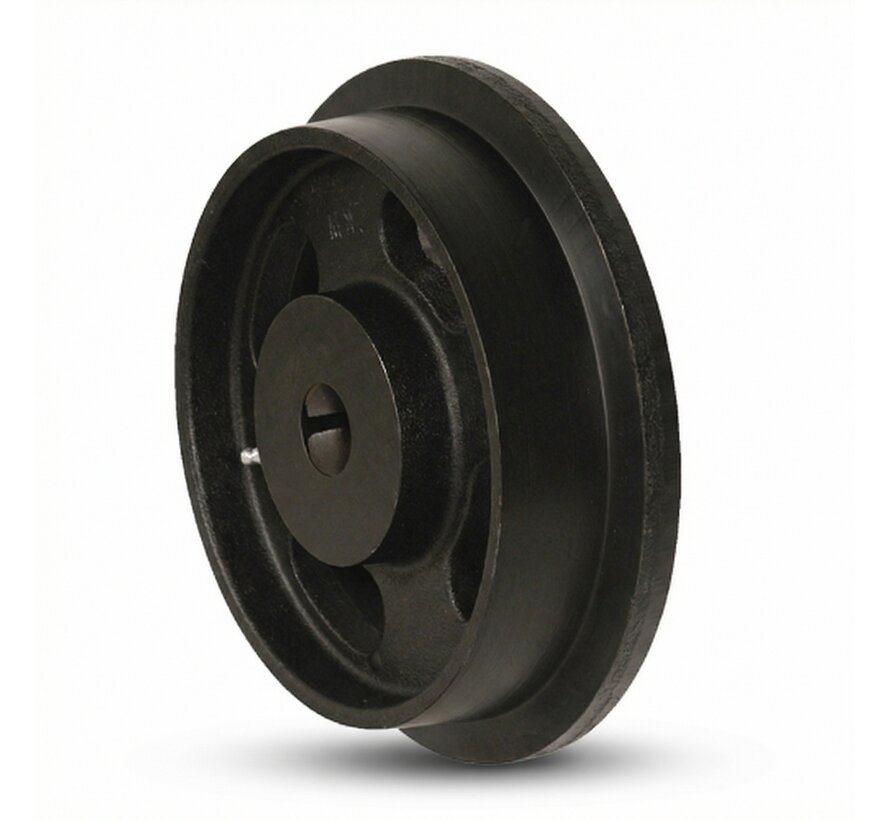

Flanged track wheel from cast iron, plain bearing, Wheel-Ø 75mm, 800KG

Product description

V-Groove and track rollers: Flanged wheel from cast iron, plain bearing, Wheel-Ø 75mm, 800KG

SPK 75G: cast iron, with Wheel centre from cast iron, plain bearing,

Features: flanged wheels (single) of special cast iron, painted. The flange and tread are pure spun. The tread extends at an angle of 3 degrees from the flange. Starting from the diameter of 150 mm a grease nipple is mounted. The wheels are available with plain or ball bearing.


Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Flanged track wheel from cast iron, plain bearing, Wheel-Ø 75mm, 800KG

V-Groove and track rollers: Flanged wheel from cast iron, plain bearing, Wheel-Ø 75mm, 800KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100020750
  • EAN 8718116074748

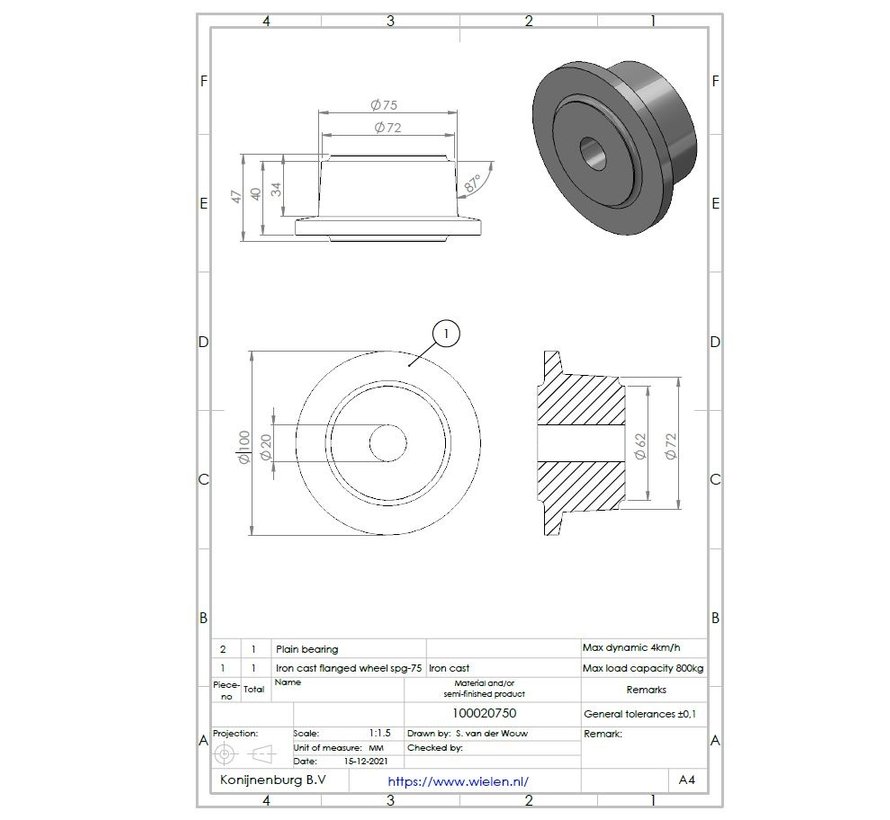

Specifications

  • Wheel diameter 75
  • Load capacity 800
  • Bearing type Sliding bearing
  • Tread description Flange wheel made of high-quality cast iron. The track crown and tread are cleanly turned off. The tread descends from the track crown at an angle of 3 degrees.
  • Type of wheel Flange / Track / Diabolo wheels
  • Wheel width without flange 30
  • Wheel diameter inc flange 100
  • Hub length 47
  • Flange type 109
  • Diameter with flange 100
  • Flange Thickness / Width 10
  • Axle hole-Ø 20
  • Series 100.02
  • Tread Cast iron / steel
