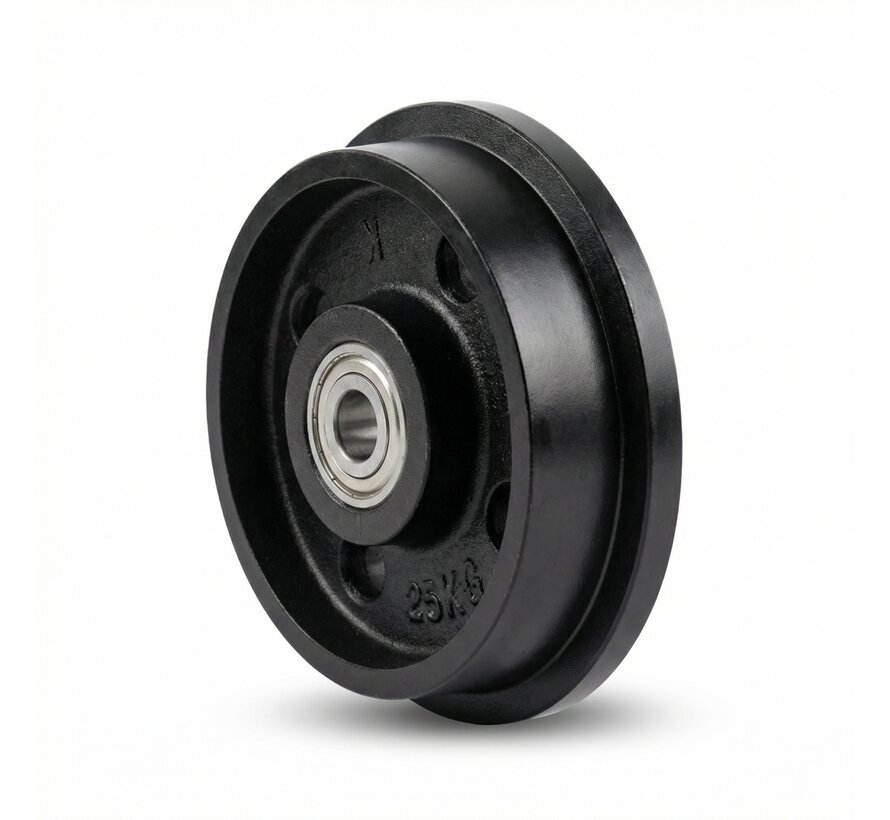

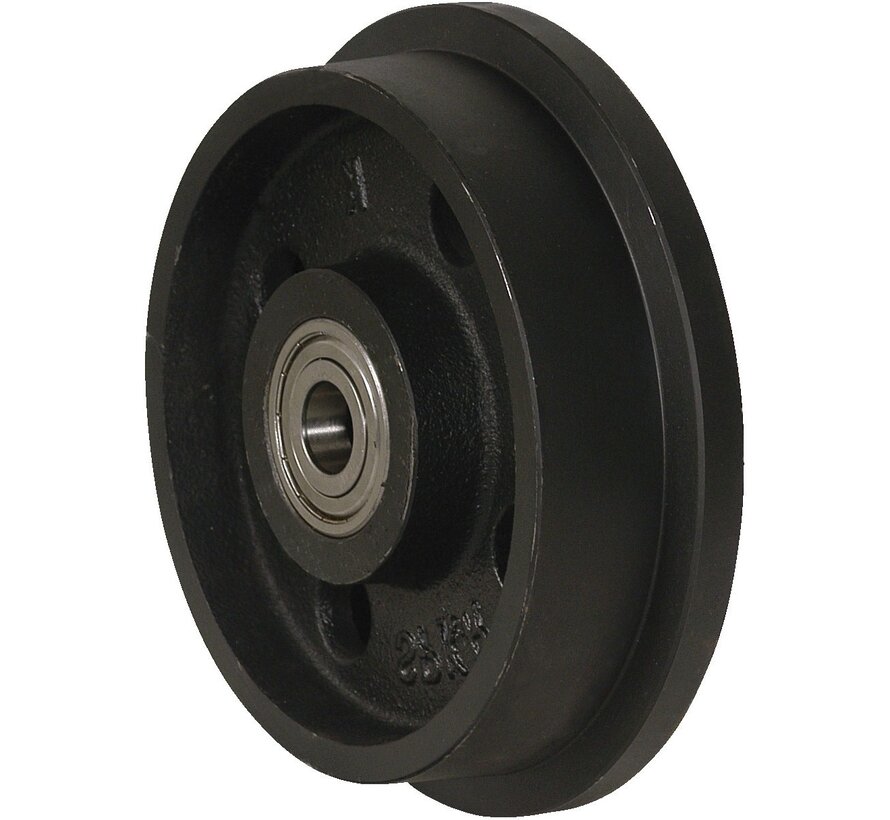

Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 250mm, 3000KG

Product description

SPK 251K Flanged track wheel from cast iron, precision ball bearing, Wheel-Ø 250mm, 3000KG

SPK 251K  Flanged wheel / Track roller


The hard tread, which is inclined by 3°, provides very low rolling resistance. Equipped with
Sealed original groove ball bearings.

Application
These track roller sets are suitable for driving on rails.


Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Flanged wheel from cast iron, precision ball bearing, Wheel-Ø 250mm, 3000KG

SPK 251K Flanged track wheel from cast iron, precision ball bearing, Wheel-Ø 250mm, 3000KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100026252
  • EAN 8718116074908

Specifications

  • Wheel diameter (mm) 250
  • Load capacity (kg) 3000
  • Bearing type Ball bearing
  • Tread description Flange wheel made of high-quality cast iron. The track crown and tread are cleanly turned off. The tread descends from the track crown at an angle of 3 degrees.
  • Type of wheel Flange / Track / Diabolo wheels
  • Wheel width without flange 50
  • Wheel diameter inc flange 300
  • Hub length (mm) 70
  • Flange type 109
  • Diameter with flange 300
  • Flange Thickness / Width 15
  • Axle hole-Ø (mm) 40
  • Series 100.02
  • Tread Cast iron / steel
