Flanged track wheel for rails from cast iron, precision ball bearing, Wheel-Ø 150mm, 1000KG

Product description

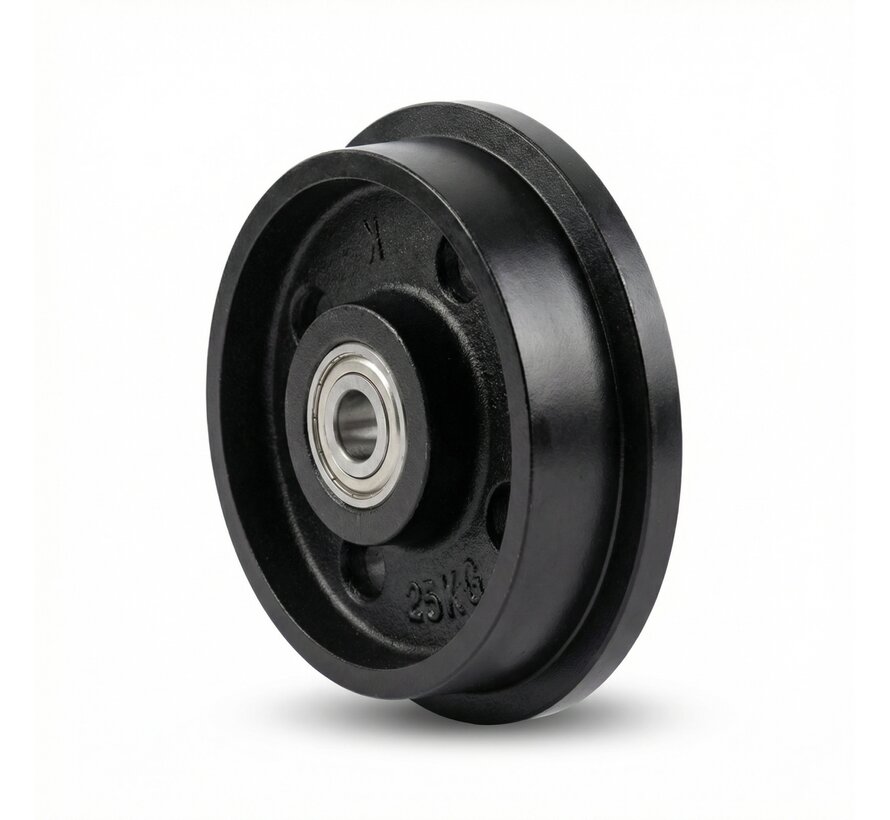

Flanged wheel from cast iron with two ball bearings, Wheel-Ø 150mm, 1000KG

SPK 150K: Wheel centre from cast iron, precision ball bearing,

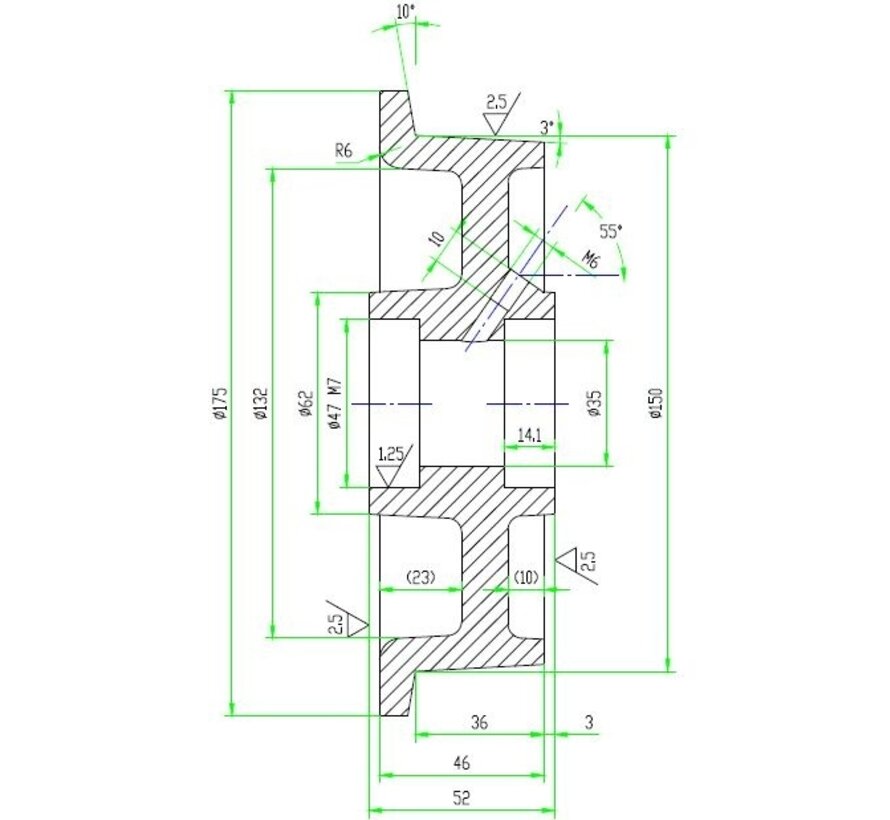

Features: flanged wheels (single) of special cast iron, painted. The flange and tread are CNC spun. The tread extends at an angle of 3 degrees from the flange. Starting from the diameter of 150 mm a grease nipple is mounted. The wheels are available with plain or ball bearing.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Flanged track wheel for rails from cast iron, precision ball bearing, Wheel-Ø 150mm, 1000KG

Flanged wheel from cast iron with two ball bearings, Wheel-Ø 150mm, 1000KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 100026150
  • EAN 8718116074823

Specifications

  • type flenswiel
  • wheel centre cast iron wheel
  • tread cast iron wheel
  • bearing type precision ball bearing
  • Axle hole-Ø 20
  • Load capacity (static) 1000
  • Hub length 52
  • Width of tread 36/46
  • Wheel-Ø 150
