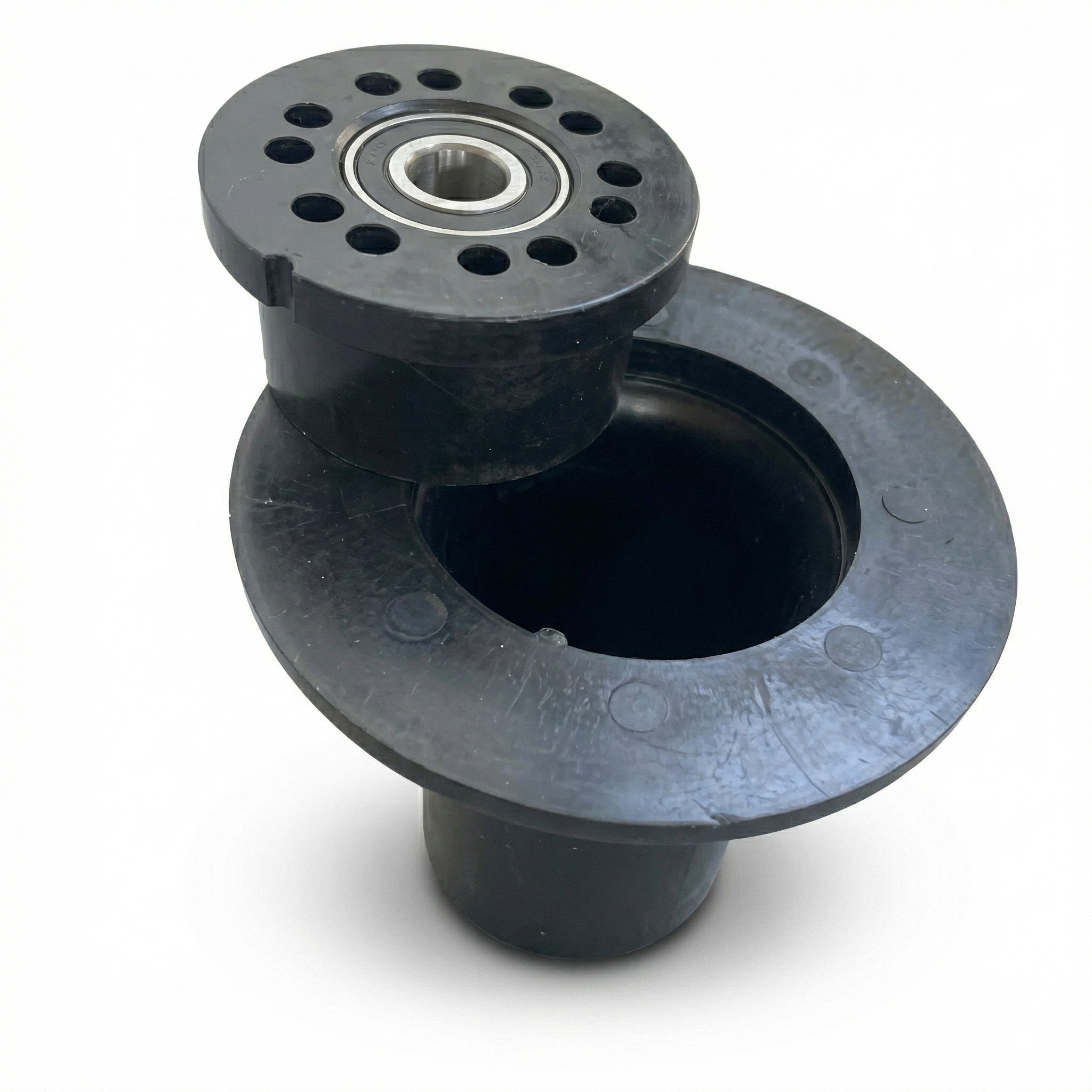

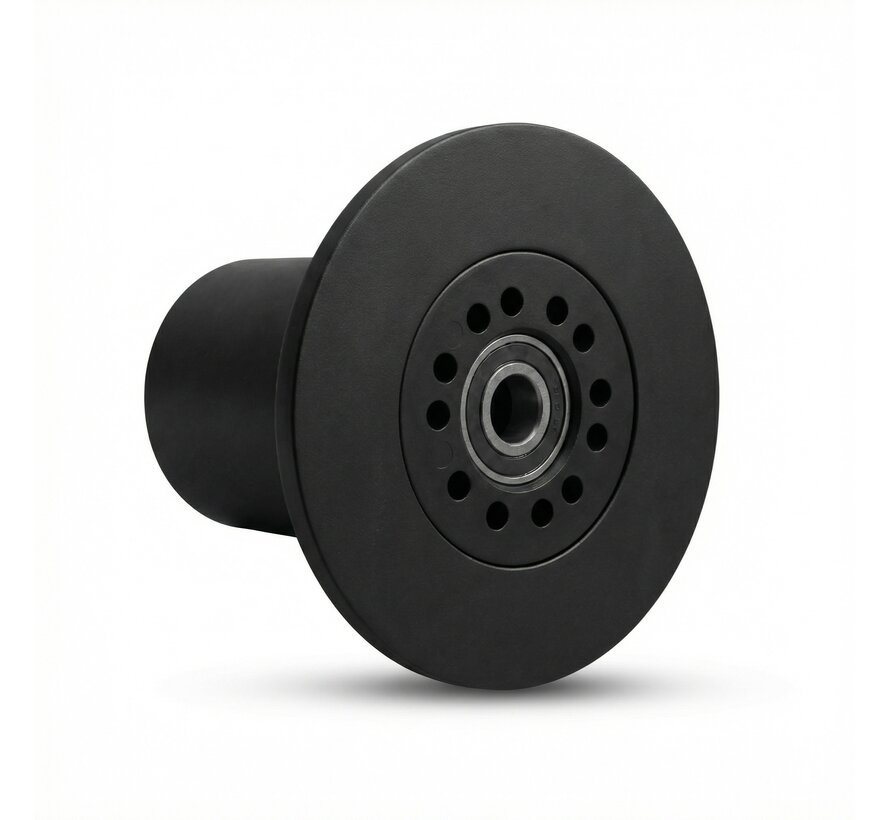

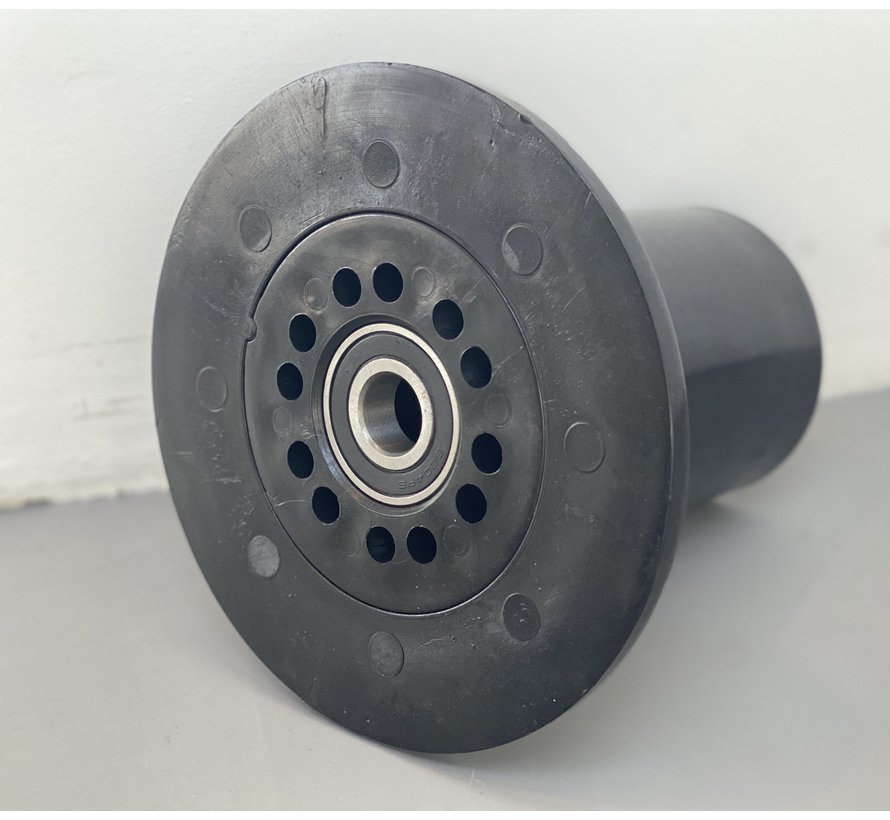

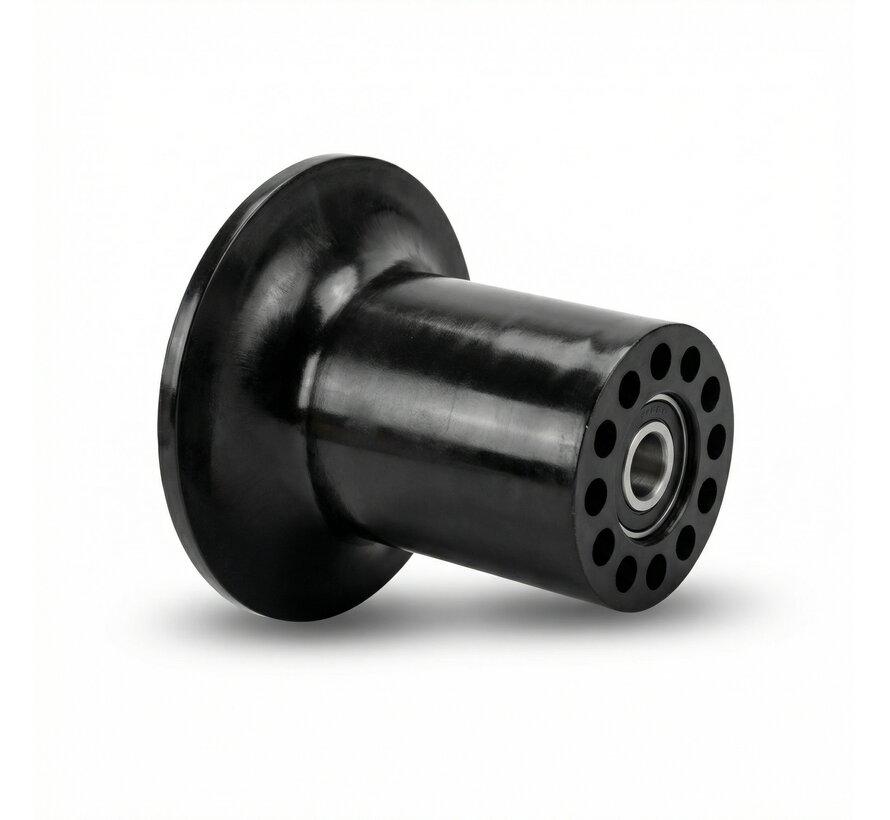

Flange roller POM 163mm diameter for axle 20mm for harvest wagons on tube-rail system also called the "Konijnenburg trumpet roller"

Product description

Flange roller 163mm diameter for axle 20mm for harvest wagons on the tube-rail system.

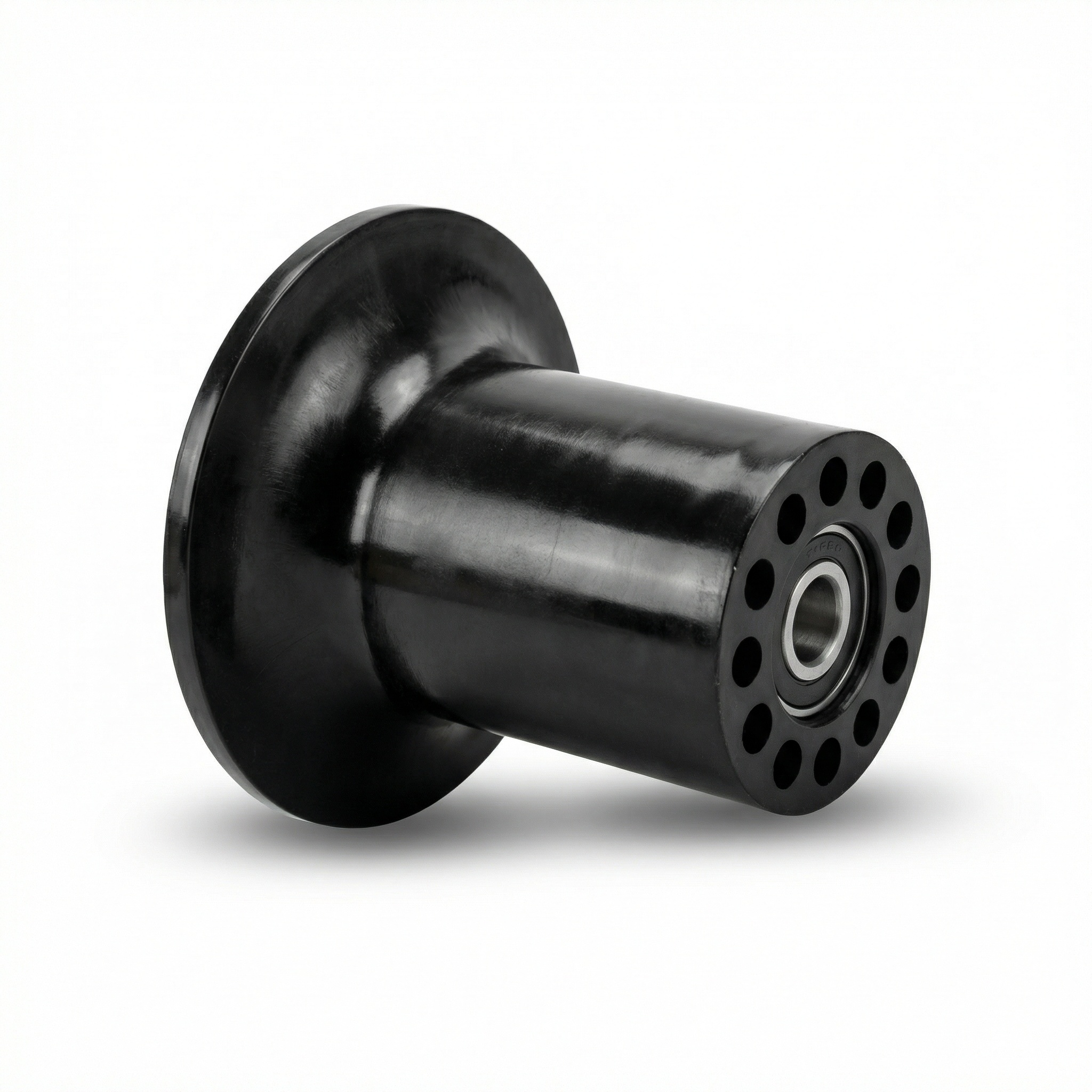

Black POM synthetic material flange wheel also called the "Konijnenburg trumpet roller" including 2 x ball bearing 6204RS, inner bearing diameter: 20mm.


Our customers frequently use these Flange Rolls in the horticultural sector under harvest carts such as Rose Harvesting Trolleys.

Standard we have these plastic flange rolls with ball bearing 6204 RS in stock.
On request, we can also mount a ball bearing for shafts with 25MM diameter.



Flange rollers made of POM (polyoxymethylene) plastic material.

POM is used in this flange wheel because it is a strong, hard, but above all dimensionally stable plastic with a very low frictional resistance. This is ideal for use in horticulture and application on aluminium or steel tubes.
In addition, it has exceptional resilient qualities as a result of which it absorbs heavy impacts and vibrations. It also has good chemical resistance to oils and fuels. Its low moisture absorption and excellent mechanical properties guarantee flange rollers that stay perfectly to size.



For a custom made solution, contact us!
