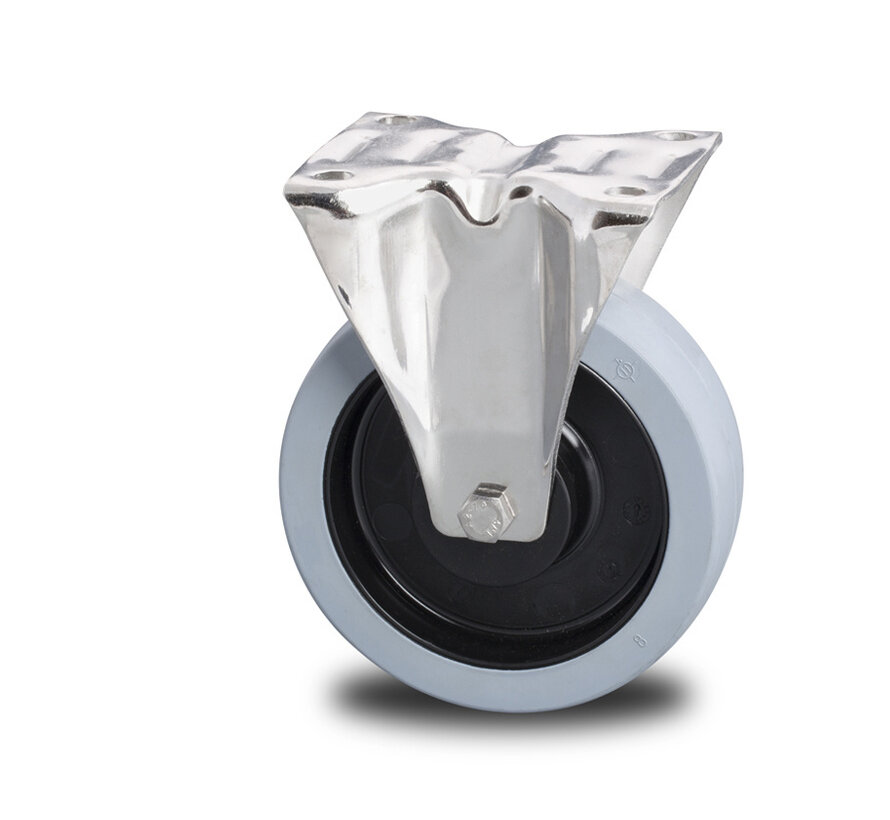

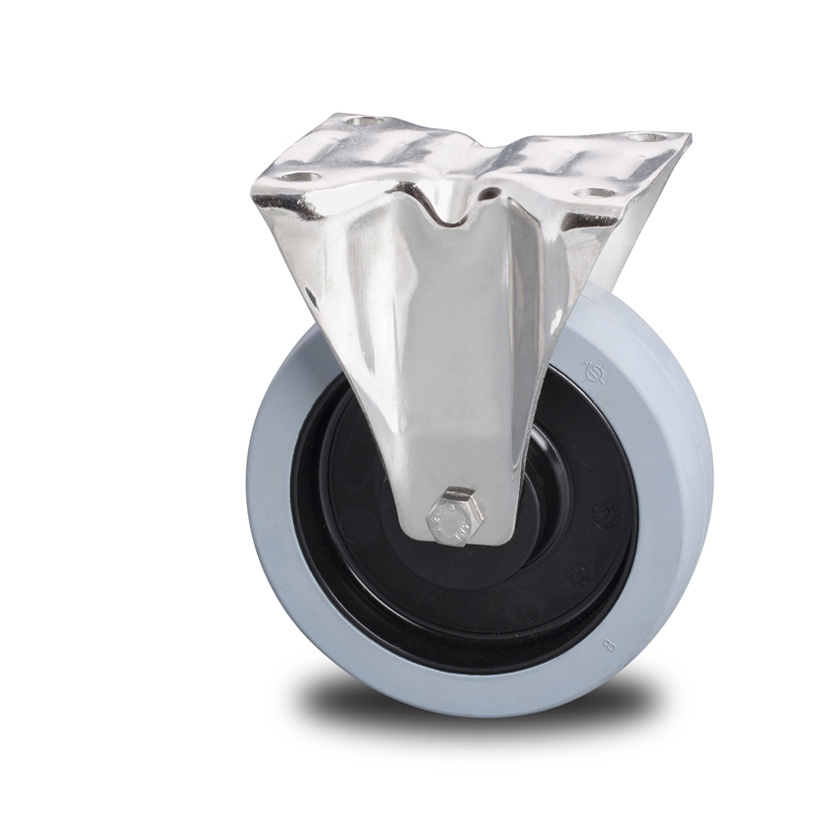

Stainless Steel Fixed caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Product description

Stainless Steel Fixed caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Stainless Steel, elastic rubber Fixed caster

Housing: Stainless Steel Pressed, stainless steel AISI 304, plate fitting
Wheel: Vulcanized elastic rubber tires, with Wheel centre from Polyamide, 2-RS precision ball bearings, threadguards with labyrinth seal

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening, non marking

Applications: Food processing industry, Laundry carts, pharmaceutical industry, hospitality, food transportation means, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotel, restaurant, catering, cafe, fish processors, supermarkets,

Suitable surface:
Suitable environment: Dry and wet environment. For chemicals and saturated steam

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless Steel Fixed caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

Stainless Steel Fixed caster from Stainless Steel Pressed, plate fitting, Vulcanized elastic rubber tires, 2-RS precision ball bearings, Wheel-Ø 125mm, 200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 296568120G
  • EAN 8718116179870

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 125
  • Load capacity (kg) 200
  • Overall height (mm) 155
  • Size of top plate (mm) 105x 85
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 9
  • Bearing type Ball bearing
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60°C
  • Castor wheel type Bucket wheel
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Series 96.56
  • Tread Solid rubber
