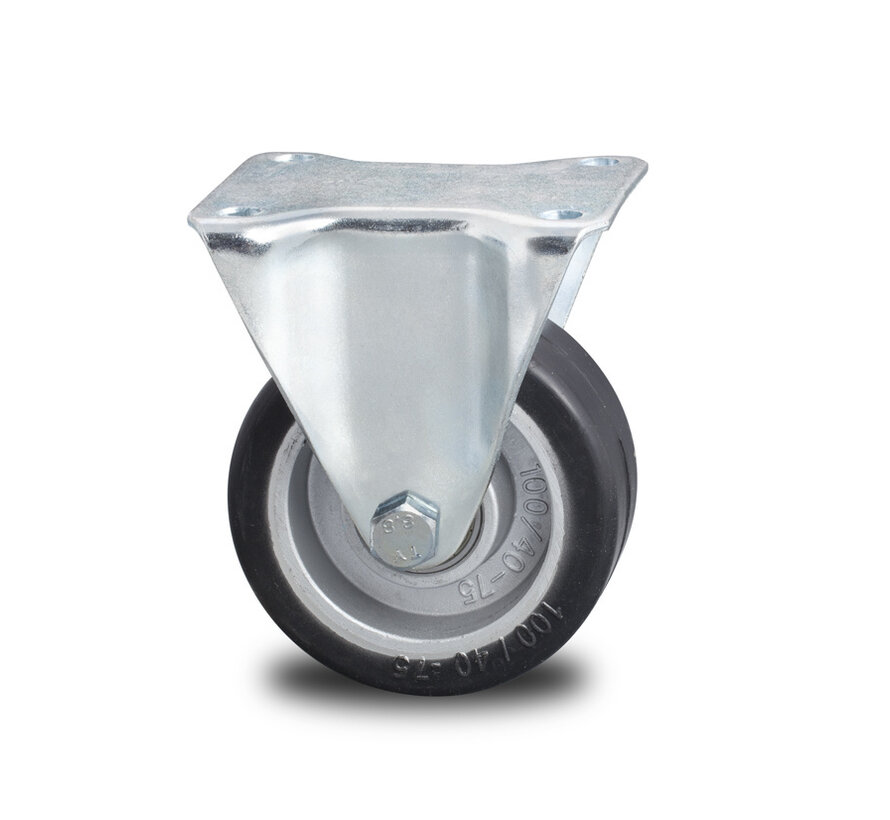

Industrial Reinforced Housing Fixed caster from Pressed hard steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

Product description

Industrial Reinforced Housing Fixed caster from Pressed hard steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

Industrial Reinforced Housing, elastic rubber Fixed caster

Housing: Pressed hard steel, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Aluminium, precision ball bearing,

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. Non marking
Suitable environment: Permanently dry and not humid. By weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Reinforced Housing Fixed caster from Pressed hard steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

Industrial Reinforced Housing Fixed caster from Pressed hard steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 284116120
  • EAN 8718116123699

Specifications

  • Non marking tread No
  • Wheel diameter 125
  • Load capacity 200
  • Overall height 155
  • Size of top plate 105x86
  • Topplate hole centres 80x60
  • Plate hole 9
  • Bearing type Ball bearing
  • Hardness of tread 75° Shore A
  • Castor wheel type Bucket wheel
  • Fitting Plate mounting
  • Series 84.11
  • Tread Solid rubber
